CRL Slip-Fit 135 Degree Horizontal Corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL 11 Gauge Cap Railing. Use our Cat. No. 32629 Metal Contact Cement to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each Corner. Standard stainless alloy is 304. Stainless alloy 316 is available on special order.
NOTE: When used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

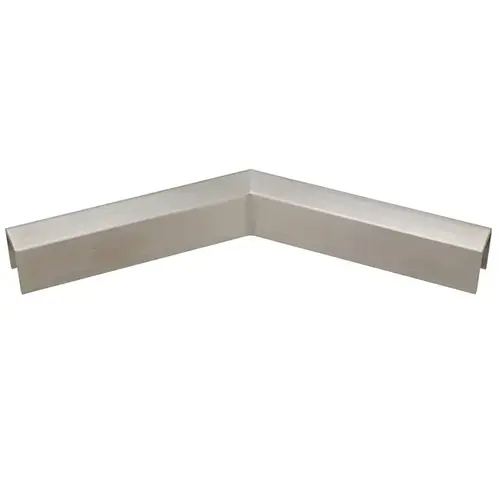

CRL GRLC10H3BSClick To Copy Brushed Stainless 11 Gauge 135 Degree Horizontal Corner for 1/2" Glass Crisp Corner Low Profile Cap Rail
Item #: GRLC10H3BS by CR Laurence
See reviewsSee reviews
In Stock
$274.77
/eachSAVE UP TO 27.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Ready-to-Install
- Two Finishes Available
- Two Profiles for 1/2" (12 mm) or 5/8" (16 mm) Glass
- Welded and Finished
Cap Rail Type
Crisp Corner
Grade
304
Style
11 Gauge 135 Degree Horizontal Corner
Type
1/2" Glass Crisp Corner Low Profile Cap Rail
Fits Cap Rail No.
GRLC10BS
Dimensions
L = 6" (152.4 mm) and C = 5-1/2" (139.7 mm)
Finish
Brushed Stainless
Material
Stainless Steel
Glazing Thickness
1/2 or 5/8
alloy
304
Finish/Color
Brushed Stainless Steel
Angle (Degrees)
135
Angle
135
Product Overview
CRL Slip-Fit 135 Degree Horizontal Corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL 11 Gauge Cap Railing. Use our Cat. No. 32629 Metal Contact Cement to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each Corner. Standard stainless alloy is 304. Stainless alloy 316 is available on special order.
NOTE: When used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
