316 Brushed Stainless 12" Fin Splice Fitting for 3/4" Glass

Roll over image to zoom in

CRL FSF12BS 316 Brushed Stainless 12" Fin Splice Fitting for 3/4" Glass

Item #: FSF12BS by CR Laurence

See reviews See reviews

In Stock $562.50 /each

SAVE UP TO 56.25

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • For Use with 3/4" Tempered Glass
  • Made of 316 Alloy Stainless Steel and Available in Brushed Stainless and Polished Stainless Finishes
  • Used to Stabilize Glass Facade

Length

12" (305 mm)

For Fin Size

12" (305 mm)

Finish

Brushed Stainless Steel

Finish/Color

Brushed Stainless Steel

Glazing Type

Tempered Monolithic, Tempered Laminated

Glazing Thickness

3/8, 1/2, 9/16, 3/4, 13/16

Load Capacity

Heavy

Material

Stainless Steel (Alloy 316)

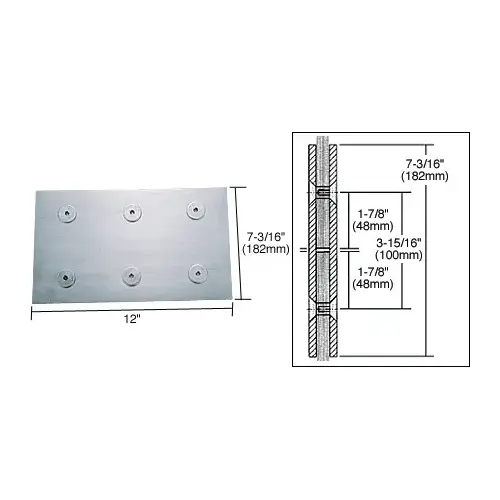

This CRL Fin Splice Fitting is designed to work with 3/4" (19 mm) glass. The Splice Fittings are used to stack multiple pieces of glass to construct extra tall fins used to stabilize the glass facade.
SPECIFICATIONS:
For Use With: 3/4" (19 mm) Tempered Glass
Do Not Use With: Annealed or Raw Glass
Glass Fabrication Required:
One 7/8" (22 mm) Diameter Hole Per Glass Fastening
Templates:
Available on Request for Each Fitting
Product Warning:
Do not use with annealed or raw glass.

.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
