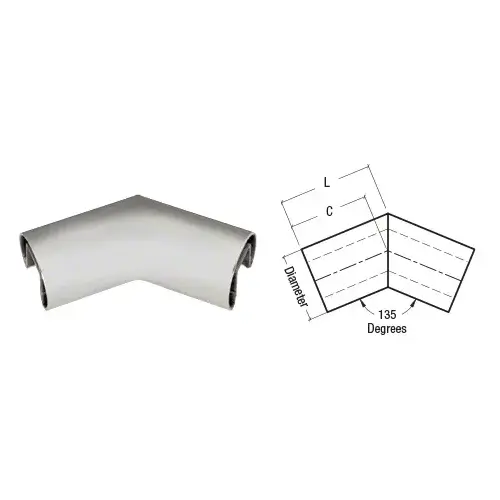

CRL GR257H3BS Brushed Stainless 2-1/2" Diameter 135 Degree Horizontal Corner for 3/4" Glass Cap Railing
Item #: GR257H3BS by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Ready-to-Install
- Variety of Architectural Finishes
- Requires Two Connector Sleeves (Not Included)
C
2-1/2 in (63.5 mm)
L
3 in (76.2 mm)
Dimensions
L=3" (76.2 mm)
Grade
304
"C"
2-1/2" (64 mm)
"L"
3" (76.2 mm)
Finish
Brushed Stainless
Material
Stainless Steel
Glazing Thickness
3/4
Finish/Color
Brushed Stainless Steel
Angle (Degrees)
135
Diameter
2-1/2"
CRL Interior Slip-Fit Horizontal Corners for 3/4" (19 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Horizontal Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. For brass, alloy 260 is standard.
NOTE: Our GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass.
Please contact DK Hardware Sales for more information or a quote.
Product Warning:
95CBL Silicone and shims should be used to secure the glass.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
