CRL Interior Slip-Fit Vertical Corners for 3/4" (19 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each Corner.
Each Vertical Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. For brass, alloy 260 is standard.
Please contact CRL Technical Sales for more information or a quote.
NOTE: Our GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass.
Product Warning:
This dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl. Use Only Stainless Steel Connector Sleeves.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL Brushed Stainless 2" 90 Degree Vertical Corner for 3/4" Glass Cap Railing
Item #: GR207VBS by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Ready-to-Install
- Requires Two Connector Sleeves (Not Included)
- Variety of Architectural Finishes
*D
3/8 in (9.5 mm)
Grade
304

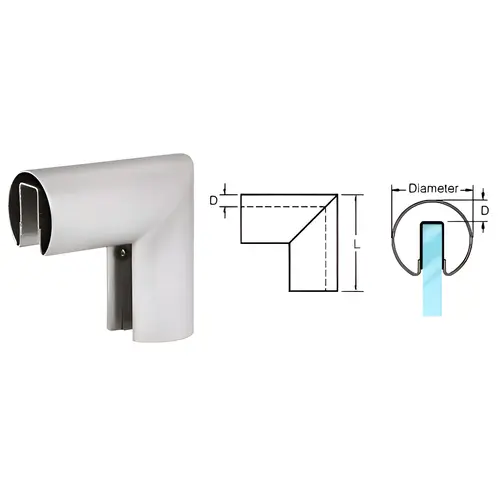

Dimensions
L=4" (102 mm) and C=3" (76.2 mm)
Length
4" (102 mm)
Finish
Brushed Stainless
Diameter
2"
Material
Stainless Steel
Finish/Color
Brushed Stainless Steel
Angle (Degrees)
90 degrees
Angle
90
Product Overview
CRL Interior Slip-Fit Vertical Corners for 3/4" (19 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each Corner.
Each Vertical Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. For brass, alloy 260 is standard.
Please contact CRL Technical Sales for more information or a quote.
NOTE: Our GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass.
Product Warning:
This dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl. Use Only Stainless Steel Connector Sleeves.
