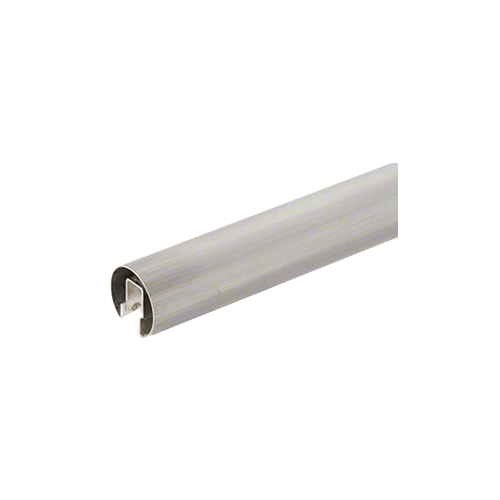

CRL GR207BS14 Brushed Stainless 2" Premium Cap Rail for 3/4" Glass - 168"
Item #: GR207BS14 by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Bumped-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Three Diameters and Four Architectural Finishes
- Connect to Fabricated Corners and End Caps
- For Brass, Alloy 260 is Standard
- For Stainless, Alloy 304 is Standard; 316 Alloy Available on Special Order
- Use Sleeve No. GR20CSS
1 in (25.4 mm)
.050" (1.27 mm)
3/8 in (9.5 mm)
1" (25.4 mm)
3/8" (10 mm)
Use Connector Sleeves to connect Cap Rails. Stainless alloy 304 is standard; Stainless alloy 316 is available on special order. For Brass, alloy 260 is standard. Please contact CRL Railing Technical Sales for more information or for a quote.
NOTE: When using GR207, GR257, and GR307 Series Cap Rails, Cat. No. GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass.
*This dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
