All CRL Premium Square Cap Rails are formed using precision tooling to maintain uniform profiles, allowing for smooth hairline transitions at splices, corners and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.
NOTE: With the exception of the GRS15 Series Cap Rails, when used with 1/2" (12 mm) glass our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GRS15 Series Cap Rails or 5/8" (16 mm) glass, use 95CBL Silicone and Shims only to secure the glass.
Product Warning:
1-1/2" (38 mm) Square Premium Cap Rail works only with 1/2" (12 mm) glass, secured with 95CBL Silicone and Shims.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

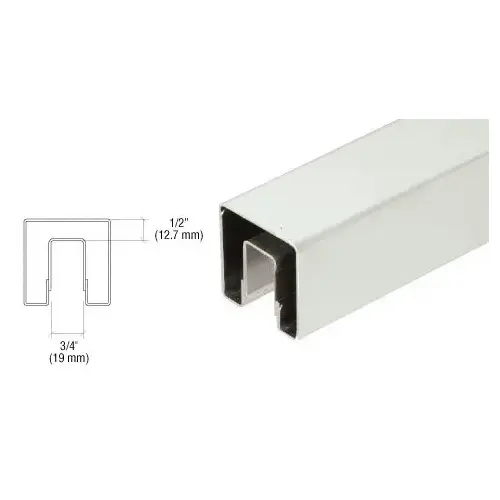

CRL GRS20BS Brushed Stainless 2" Square Premium Cap Rail for 1/2" or 5/8" Glass - 120" Long
Item #: GRS20BS by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- 304 Stainless Alloy is Standard 316 Alloy Available on Special Order
- Compatible with Premium Corners
- Profiles Range from 1-1/2" (38 mm) to 2-1/2" (63.5 mm) Sizes
- Stock Lengths Available in Three Sizes and Two Architectural Finishes
- Use Sleeve No. GRS20CSS
Grade
304
Thickness
.050" (1.27 mm)
"D" Depth
1/2" (12.7 mm)
Depth
1/2 in (12.7 mm)
"W" Width
3/4" (19 mm)
Type
2" Square Premium Cap Rail for 1/2" or 5/8" Glass - 120" Long
"D" Depth*
1/2" (12.7 mm)
Finish
Brushed Stainless
Glass Size
120"
Material
Stainless Steel
Length
120
Width
2
Glazing Thickness
1/2 or 5/8
Finish/Color
Brushed Stainless Steel
Height
2
Product Overview
All CRL Premium Square Cap Rails are formed using precision tooling to maintain uniform profiles, allowing for smooth hairline transitions at splices, corners and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.
NOTE: With the exception of the GRS15 Series Cap Rails, when used with 1/2" (12 mm) glass our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GRS15 Series Cap Rails or 5/8" (16 mm) glass, use 95CBL Silicone and Shims only to secure the glass.
Product Warning:
1-1/2" (38 mm) Square Premium Cap Rail works only with 1/2" (12 mm) glass, secured with 95CBL Silicone and Shims.
