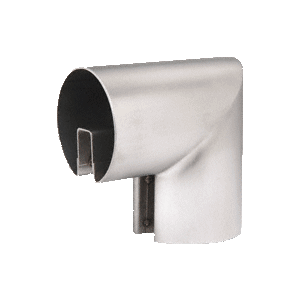

CRL GR35VBS Brushed Stainless 3-1/2" 90 Degree Vertical Corner for 1/2" or 5/8" Glass Cap Railing

1 reviews

$242.45 /each

Item #: GR35VBS by CR Laurence

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

CRL GR35VBS Brushed Stainless 3-1/2" 90 Degree Vertical Corner for 1/2" or 5/8" Glass Cap Railing

1 1 reviews

$242.45 /each

Item #: GR35VBS by CR Laurence

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist
Buy In Bulk

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

  • Four Architectural Finishes
  • Ready-to-Install
  • Requires Two Connector Sleeves (Not Included)

*D

*1-7/8 in (47.6 mm)

Length

5-1/2 in (139.7 mm)

Minimum Order

1 Each

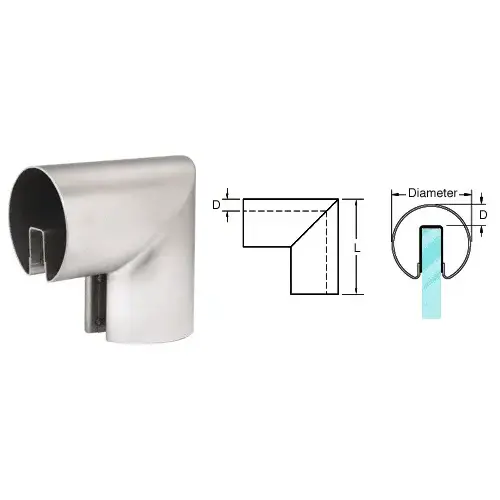

Dimensions

L=5-1/2" (139.7 mm)

Grade

304

D

1-7/8" (47.6 mm)

L

5-1/2" (139.7 mm)

Finish

Brushed Stainless

Interior slip-fit Vertical Corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Vertical Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. For brass, alloy 260 is standard.
Please contact DK Hardware Sales for more information or a quote.
NOTE: With the exception of the GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass. Important Notes: Dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
