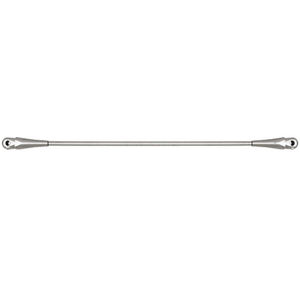

CRL GAS137BS 316 Brushed Stainless 37" Glass Awning System Connecting Rod for 36" Wide Panels
Item #: GAS137BS by CR Laurence
1 1
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Complete Hardware System for 9/16" (14 mm) Tempered Laminated Glass Awnings
- Provides Protection from the Weather Without Obstructing the View
- Adjustable Slope for Most Weather Conditions
- All High Grade 316 Alloy Stainless Steel Components for Panel Sizes Up to 48" (1.22 m) Wide and 72" (1.83 m) Long with Two Rods and Mounting Kits
- Easy Installation Allows an Economical and Elegant Solution for Both Commercial and Residential Applications
- Use Monolithic Tempered Glass
Overall Length +/- 5/8 in. (15.9 mm)
37" (940 mm)
Connecting Rod
37" (940 mm) ± 5/8" (16 mm)
Type
Glass Awning System Connecting Rod
Panel
36" Wide Panels
Size
37" (940 mm)
Diameter
12 mm
Finish
Brushed Stainless Steel
Material
316 Stainless Steel
Length
37
Maximum panel width
36
Finish/Color
Brushed Stainless Steel
Length Adjustment (Inches)
5/8
Maximum Panel Length (Inches)
72
The CRL Glass Awning Support System provides an uncomplicated and graceful look to the entrance. The use of tempered glass makes it possible to add colors, textures and special effects which is otherwise not possible with typical monolithic glass. This compliments and enhances the design of any building. CRL Brushed Stainless 37" Glass Awning System Connecting Rod for 36" Wide Panels features the use of fork and eye connection that makes the installation easy and quick. They are designed to make field adjustments on varying job conditions a snap. All components are fabricated in stainless steel that provides durability and strength to the rods. These rods can withstand the extreme environmental conditions. For additional information, contact CRL Architectural and Ornamental Metals Technical Sales Department. SPECIFICATIONS: Material: All 316 alloy stainless steel construction. Typical Panel: 9/16" (14 mm) thick tempered laminated glass comprised of 1/4" (6 mm) tempered glass, .060" (1.5 mm) interlayer, and 1/4" (6 mm) tempered glass. Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel DS 07/08/2016
From Manufacturer
The CRL Glass Awning Support System will give any entrance an uncomplicated, graceful look. With the use of tempered laminated glass you can add a range of glass colors, textures, and special effects not available with typical monolithic glass. This complements and enhances the design of any building.
The use of eye and fork connections makes the installation of our Awning System quick and easy. The Connecting Rods are designed to make field adjustments on varying job conditions a snap. All components are 316 Alloy Stainless Steel for durability in even the harshest of environments.
For additional information, contact CRL Architectural and Ornamental Metals Technical Sales Department.
SPECIFICATIONS:
Material: All 316 alloy stainless steel construction.
Typical Panel: 9/16" (14 mm) thick tempered laminated glass comprised of 1/4" (6 mm) tempered glass, .060" (1.5 mm) interlayer, and 1/4" (6 mm) tempered glass.
Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel.
Ordering Tip: Though sold individually, two Connecting Rods and two Mounting Kits are required for each panel.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
