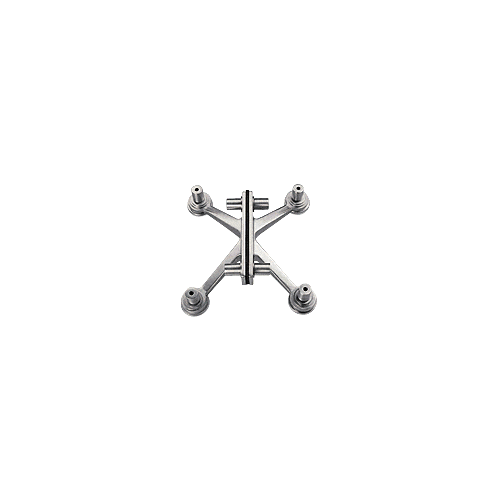

CRL SPF4HBS Brushed Stainless 4-Way Heavy-Duty Fin Stabilized Glass-to-Glass Spider Fitting
Item #: SPF4HBS by CR Laurence
See reviews

Roll over image to zoom in
CRL SPF4HBS Brushed Stainless 4-Way Heavy-Duty Fin Stabilized Glass-to-Glass Spider Fitting
Item #: SPF4HBS by CR Laurence
See reviews See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Designed for the 'All-Glass' Look
- For Use with 1/2" to 3/4" Tempered Glass for Facades, 3/4" Tempered Glass for Fins
- Made of 316 Alloy Stainless Steel and Available in Brushed Stainless and Polished Stainless Finishes
Minimum Order
1 Each
Type
Heavy Duty Spider Fittings
Style
4-Way Heavy-Duty Fin Stabilized Glass-to-Glass Spider Fitting
Finish
Brushed Stainless
This CRL Heavy-Duty Fin Stabilized Spider Fitting can be used with 1/2" (12 mm) to 3/4" (19 mm) facade glass, 3/4" (19 mm) glass, or metal fins to stabilize the deflections associated with wind and stack load pressures, while maintaining an 'all-glass' look.
The Heavy-Duty Fin Stabilized Spiders are an economical choice for most projects. Each Spider is supplied with the countersunk swivel glass fastening fittings. Alternate glass fasteners are available separately.
NOTE: To determine whether Regular-Duty or Heavy-Duty Spider Fittings are needed for your application, please consult local building requirements and a licensed structural engineer.
For additional assistance, contact DK Hardware Sales.
SPECIFICATIONS:
For Use With: 1/2" to 3/4" (12 to 19 mm) Glass
Glass Fabrication Required: One 1-7/16" (36.5 mm) diameter countersunk hole per facade glass fastening, and one 7/8" (22 mm) diameter hole per fin fastener
Templates: Available on Request for Each Fitting
Typical Applications:
Malls
Atriums
Airports
Museums
'All-Glass' Curtainwalls Important Notes: Do Not Use With Annealed or Raw Glass. To determine whether Regular-Duty or Heavy Duty Spider Fittings are needed for your application, please consult local building requirements and a licensed structural engineer.
The Heavy-Duty Fin Stabilized Spiders are an economical choice for most projects. Each Spider is supplied with the countersunk swivel glass fastening fittings. Alternate glass fasteners are available separately.
NOTE: To determine whether Regular-Duty or Heavy-Duty Spider Fittings are needed for your application, please consult local building requirements and a licensed structural engineer.
For additional assistance, contact DK Hardware Sales.
SPECIFICATIONS:
For Use With: 1/2" to 3/4" (12 to 19 mm) Glass
Glass Fabrication Required: One 1-7/16" (36.5 mm) diameter countersunk hole per facade glass fastening, and one 7/8" (22 mm) diameter hole per fin fastener
Templates: Available on Request for Each Fitting
Typical Applications:
