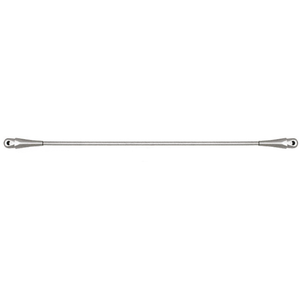

CRL GAS145BS 316 Brushed Stainless 45" Glass Awning System Connecting Rod for 42" Wide Panels
Item #: GAS145BS by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Complete Hardware System for 9/16" (14 mm) Tempered Laminated Glass Awnings
- Provides Protection From the Weather Without Obstructing the View
- Adjustable Slope for Most Weather Conditions
- All High Grade 316 Alloy Stainless Steel Components for Panel Sizes Up to 48" (1.22 m) Wide and 72" (1.83 m) Long with Two Rods and Mounting Kits
- Easy Installation Allows an Economical and Elegant Solution for Both Commercial and Residential Applications
- Use Monolithic Tempered Glass
Diameter
12 mm
Type
Glass Awning System Connecting Rod
Size
45" (1.14 m)
Overall Length +/- 5/8 in. (15.9 mm)
45 in (1143 mm)
Overall Length +/- 5/8" (15.9 mm)
45" (1143 mm)
Connecting Rod
45" (1.14 m) ± 5/8" (16 mm)
Panel
42" Wide Panels
Finish
Brushed Stainless Steel
Material
316 Stainless Steel
Length
45
Maximum panel width
42
Finish/Color
Brushed Stainless Steel
Length Adjustment (Inches)
5/8
Maximum Panel Length (Inches)
72
The CRL Glass Awning Support System provides an elegant and uncomplicated look to any entrance. It can be used both for residential as well as commercial applications. With the use of tempered laminated glass, you can add a range of color and textures which are not available with typical monolithic glass. This can enhance the look of any building. Without obstructing the view. The fork and eye design makes this awning system easy and quick to install. All rods are made up of stainless steel and provide better durability even in extreme weather conditions. The rods are designed to make field adjustments on various job conditions possible. For additional information, contact CRL Architectural and Ornamental Metals Technical Sales Department. Specifications: Material: All 316 alloy stainless steel construction. Typical Panel: 9/16" (14 mm) thick tempered laminated glass comprised of 1/4" (6 mm) tempered glass, .060" (1.5 mm) interlayer, and 1/4" (6 mm) tempered glass. Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel. Ordering Tip: Though sold individually, two Connecting Rods and two Mounting Kits are required for each panel. DS 06/27/2016
From Manufacturer
The CRL Glass Awning Support System will give any entrance an uncomplicated, graceful look. With the use of tempered laminated glass you can add a range of glass colors, textures, and special effects not available with typical monolithic glass. This complements and enhances the design of any building.
The use of eye and fork connections makes the installation of our Awning System quick and easy. The Connecting Rods are designed to make field adjustments on varying job conditions a snap. All components are 316 Alloy Stainless Steel for durability in even the harshest of environments.
For additional information, contact CRL Architectural and Ornamental Metals Technical Sales Department.
SPECIFICATIONS:
Material: All 316 alloy stainless steel construction.
Typical Panel: 9/16" (14 mm) thick tempered laminated glass comprised of 1/4" (6 mm) tempered glass, .060" (1.5 mm) interlayer, and 1/4" (6 mm) tempered glass.
Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel.
Ordering Tip: Though sold individually, two Connecting Rods and two Mounting Kits are required for each panel.
The use of eye and fork connections makes the installation of our Awning System quick and easy. The Connecting Rods are designed to make field adjustments on varying job conditions a snap. All components are 316 Alloy Stainless Steel for durability in even the harshest of environments.
For additional information, contact CRL Architectural and Ornamental Metals Technical Sales Department.
SPECIFICATIONS:
Material: All 316 alloy stainless steel construction.
Typical Panel: 9/16" (14 mm) thick tempered laminated glass comprised of 1/4" (6 mm) tempered glass, .060" (1.5 mm) interlayer, and 1/4" (6 mm) tempered glass.
Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel.
Ordering Tip: Though sold individually, two Connecting Rods and two Mounting Kits are required for each panel.
