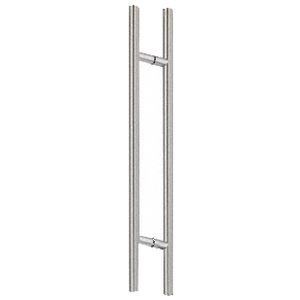

CRL 48LPBS Brushed Stainless 48" Extra Length Ladder Style Back-to-Back Pull
Item #: 48LPBS by CR Laurence
In Stock $499.46 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Eleven Sizes Ranging From 24" to 84" (610 mm to 2.13 m) Overall Height
- Brushed or Polished Stainless Steel
- Custom Lengths, Designs, and Finishes Available on Special Order
- Made of 304 Grade Stainless Steel
Glass Fabrication
for 1/2" (12 mm) glass - two 5/8" (16 mm) diameter holes required for 3/4" (19 mm) glass - two 7/8" (22 mm) diameter holes
Overall Length
48
Center-to-Center Mounting
36 in (914 mm)
Mounting Holes Center-to-Center
36" (914 mm)
Glass Fabrication Required
Two 5/8" (16 mm) Diameter Holes
Finish
Brushed Stainless
Center to Center
36
Glazing Thickness
3/8 To 3/4
Finish/Color
Brushed Stainless Steel
Style Washers
No
Mounting Hole Diameter (Inches)
5/8
Diameter
1-1/4"
Mounting Type
Back-To-Back
Material
Stainless Steel
Mounting Center To Center (Inches)
36
CRL Straight Style Ladder Pulls come with two mid-posts and fasteners for mounting back-to-back on 3/8" to 3/4" (10 to 19 mm) thick tempered glass, or on 1-3/4" (44 mm) wood or aluminum doors. Custom Ladder Pulls can be ordered with additional mid-posts for added support. Maximum spacing of mid-posts is limited to 72" (1.83 m).
SPECIFICATIONS:
3/8" to 3/4" (10 to 19 mm) Thick Tempered Glass, or 1-3/4" (44 mm) Thick Aluminum or Wood Doors
CONSTRUCTION:
1-1/4" (32 mm) Diameter 304 Grade Stainless Steel Tubing
GLASS FABRICATION:
Requires Two 5/8" (16 mm) Diameter Holes
NOTE:
Click Here to view Our Single Sided Ladder Pulls in all available sizes and finishes.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
