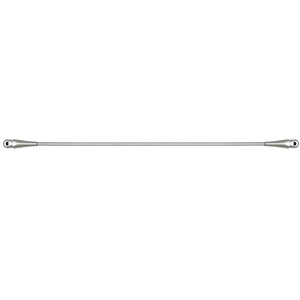

CRL GAS154BS 316 Brushed Stainless 54" Glass Awning System Connecting Rod for 48" Wide Panels
Item #: GAS154BS by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Complete Hardware System for 9/16" (14 mm) Tempered Laminated Glass Awnings
- Provides Protection From the Weather Without Obstructing the View
- Adjustable Slope for Most Weather Conditions
- All High Grade 316 Alloy Stainless Steel Components for Panel Sizes Up to 48" (1.22 m) Wide and 72" (1.83 m) Long with Two Rods and Mounting Kits
- Easy Installation Allows an Economical and Elegant Solution for Both Commercial and Residential Applications
Diameter
12 mm
Type
Glass Awning System Connecting Rod
Size
54" (1372 mm)
Overall Length +/- 5/8 in. (15.9 mm)
54 in (1371 mm)
Overall Length +/- 5/8" (15.9 mm)
54" (1371 mm)
Connecting Rod
54" (1.37 m) ± 5/8" (16 mm)
Panel
48" Wide Panels
Finish
Brushed Stainless Steel
Material
316 Stainless Steel
Length
54
Maximum panel width
48
Finish/Color
Brushed Stainless Steel
Length Adjustment (Inches)
5/8
Maximum Panel Length (Inches)
72
The CRL Glass Awning Support System is an elegant solution for both commercial as well as residential applications. It gives any entrance a more graceful and uncomplicated look. Lots of changes can be made with the use of tempered laminated glass in variety of colors, textures and special effects which are otherwise not possible with typical monolithic glass. The CRL Glass Awning Support System features eye and fork connections that makes the installations simple and easy. All components are 316 alloy stainless steel for more durability and tolerance to harsh weather conditions. These connecting rods can be adjusted depending on the various job conditions. For more information, contact CRL Architectural and Ornamental Metals Technical Sales Department. Specifications: Material: All 316 alloy stainless steel construction. Typical Panel: 9/16" (14 mm) thick tempered laminated glass comprised of 1/4" (6 mm) tempered glass, .060" (1.5 mm) interlayer, and 1/4" (6 mm) tempered glass. Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel. Ordering Tip: Though sold individually, two Connecting Rods and two Mounting Kits are required for each panel DS 06/27/2016
From Manufacturer
The CRL Glass Awning Support System will give any entrance an uncomplicated, graceful look. With the use of tempered laminated glass you can add a range of glass colors, textures, and special effects not available with typical monolithic glass. This complements and enhances the design of any building.
The use of eye and fork connections makes the installation of our Awning System quick and easy. The Connecting Rods are designed to make field adjustments on varying job conditions a snap. All components are 316 Alloy Stainless Steel for durability in even the harshest of environments.
For additional information, contact CRL Architectural and Ornamental Metals Technical Sales Department.
SPECIFICATIONS:
Material: All 316 alloy stainless steel construction.
Typical Panel: 9/16" (14 mm) thick tempered laminated glass comprised of 1/4" (6 mm) tempered glass, .060" (1.5 mm) interlayer, and 1/4" (6 mm) tempered glass.
Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel.
Ordering Tip: Though sold individually, two Connecting Rods and two Mounting Kits are required for each panel.
The use of eye and fork connections makes the installation of our Awning System quick and easy. The Connecting Rods are designed to make field adjustments on varying job conditions a snap. All components are 316 Alloy Stainless Steel for durability in even the harshest of environments.
For additional information, contact CRL Architectural and Ornamental Metals Technical Sales Department.
SPECIFICATIONS:
Material: All 316 alloy stainless steel construction.
Typical Panel: 9/16" (14 mm) thick tempered laminated glass comprised of 1/4" (6 mm) tempered glass, .060" (1.5 mm) interlayer, and 1/4" (6 mm) tempered glass.
Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel.
Ordering Tip: Though sold individually, two Connecting Rods and two Mounting Kits are required for each panel.
