CRL Overhead Track Full Panel Bi-Fold Door Systems are available in four configurations, with a maximum of three panels on each side of the opening. The panels are joined by hinged end caps, and are hung from a single Cat. No. 0TCA Carriage Assembly at the panel's end point.
Use the Cat. No. 0TBR Series Guide Channel supplied with each order to prevent the panels from dragging during operation. Maximum panel weight not to exceed 170 lbs. (77 kg). Maximum panel width is 39" (990 mm). Minimum panel width is 15" (381 mm).
NOTE: Available with 4" (102 mm) square rails, and by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department.
Product Warning:
IMPORTANT Maximum panel width allowed for 0TB6BP system is 34" (864 mm), not 39" as noted in some catalogs. Overall opening widths cannot exceed 205-1/8" (5.21 m) to meet the 34" (864 mm) maximum panel width.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

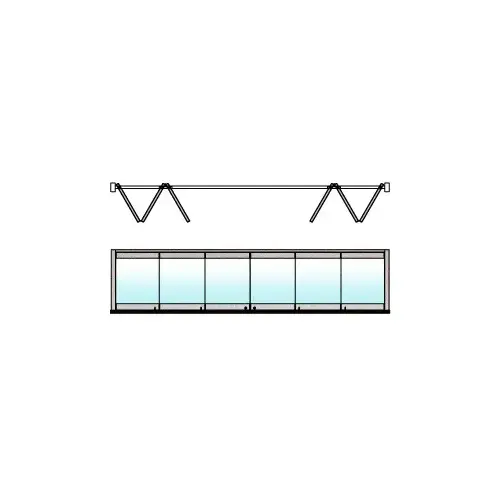

CRL Brushed Stainless 6-Panel Bipart Overhead Track Full Bi-Fold Door Configuration
Item #: 0TB6BPBS by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Use Monolithic Tempered Glass
- Custom Built to Your Specifications for Fit and Finish
- Featuring 4" (102 mm) Square DR4S Series Door Rails
- Panels Hung From End Point, Minimizing Obstruction
Panel
6-Panel
Type
Full Bi-Fold Door Configuration
Finish
Brushed Stainless
Glazing Thickness
3/8, 1/2
Maximum panel width
39
Finish/Color
Brushed Stainless Steel
Series
OT Overhead Track Bi-Fold
Door Bottom Rail (3/8 Inch Glass)
DR4SBS38C
Door Top Rail (1/2 Inch Glass)
DR4SBS12C
Door Bottom Rail (1/2 Inch Glass)
DR4SBS12C
Door Top Rail (3/8 Inch Glass)
DR4SBS38C
Configuration
Single Track Full Leaf 3 Panels Left 3 Panels Right
Swing
Bi Fold
Profile
Square
Minimum Door Width
15 in. (381 mm)
Maximum Panel Weight
170 lbs. (77.1 kg)
Minimum Overall Opening Width
205-1/8 in. (5210 mm)
Product Overview
CRL Overhead Track Full Panel Bi-Fold Door Systems are available in four configurations, with a maximum of three panels on each side of the opening. The panels are joined by hinged end caps, and are hung from a single Cat. No. 0TCA Carriage Assembly at the panel's end point.
Use the Cat. No. 0TBR Series Guide Channel supplied with each order to prevent the panels from dragging during operation. Maximum panel weight not to exceed 170 lbs. (77 kg). Maximum panel width is 39" (990 mm). Minimum panel width is 15" (381 mm).
NOTE: Available with 4" (102 mm) square rails, and by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department.
Product Warning:
IMPORTANT Maximum panel width allowed for 0TB6BP system is 34" (864 mm), not 39" as noted in some catalogs. Overall opening widths cannot exceed 205-1/8" (5.21 m) to meet the 34" (864 mm) maximum panel width.
