CRL Protective Barrier Clamps are made to secure bullet resistant barrier systems in high - security applications. All clamps are made of high quality stainless steel to provide reliable security, are available in a variety of finishes, and provide an attractive design to your installation. Custom Clamps are available on special order for 3/4" (19 mm) thick glazing material.

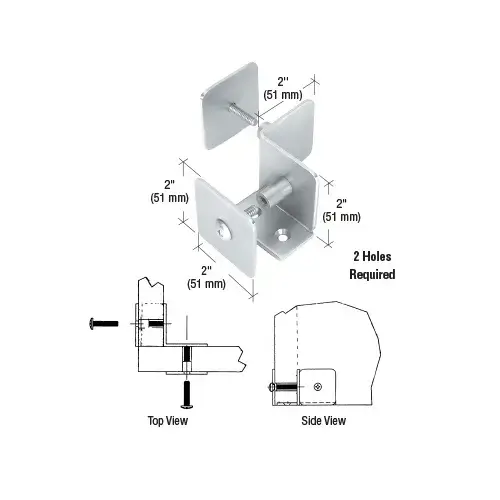

This CRL 90 Degree Bottom Mount Inside Clamp is made to secure bullet resistant acrylic or polycarbonate to the counter surface. Two screws secure the clamp to the glazing material, and two screws secure the clamp to the counter surface. For the glazing material to sit flush on the counter, a notch for the base mounting plate is required. If the glazing material is not notched for the base mounting plate an 1/8" (3 mm) gap will be created.
SPECIFICATIONS:
Material: 11 Gauge Stainless Steel
Finishes: Brushed Stainless, Polished Stainless, Satin Chrome
Glazing: Use with 1-1/4" (32 mm) Acrylic or 1-1/4" (32 mm) Polycarbonate
Includes: Mounting Screws, Instructions
Glass Fabrication: 3/4" (19 mm) hole required.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

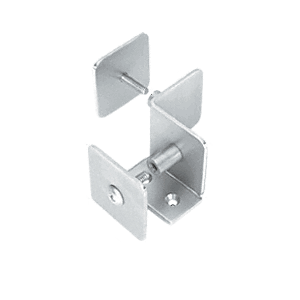

CRL PB005BSClick To Copy Brushed Stainless Bullet Resistant Protective Barrier System 90 Degree Bottom Mount Inside Clamp
Item #: PB005BS by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Create Your Own Complete Barrier System with CRL Components
- Made to Secure Bullet Resistant 1-1/4" (32 mm) Acrylic or Polycarbonate Barrier Systems in High-Security Applications
- Made of High Quality Stainless Steel to Provide Reliable Security
Height
2" (51 mm)
Shipping Weight
1 lb (454g)
Width
2" (51 mm)
Finish
Brushed Stainless
Type
90 Degree Bottom Mount Inside
Panel To Panel Angle (Degrees)
90
Glazing Thickness
1-1/4
Material
Stainless Steel
Finish/Color
Brushed Stainless Steel
Product Overview
CRL Protective Barrier Clamps are made to secure bullet resistant barrier systems in high - security applications. All clamps are made of high quality stainless steel to provide reliable security, are available in a variety of finishes, and provide an attractive design to your installation. Custom Clamps are available on special order for 3/4" (19 mm) thick glazing material.
This CRL 90 Degree Bottom Mount Inside Clamp is made to secure bullet resistant acrylic or polycarbonate to the counter surface. Two screws secure the clamp to the glazing material, and two screws secure the clamp to the counter surface. For the glazing material to sit flush on the counter, a notch for the base mounting plate is required. If the glazing material is not notched for the base mounting plate an 1/8" (3 mm) gap will be created.
SPECIFICATIONS:
Material: 11 Gauge Stainless Steel
Finishes: Brushed Stainless, Polished Stainless, Satin Chrome
Glazing: Use with 1-1/4" (32 mm) Acrylic or 1-1/4" (32 mm) Polycarbonate
Includes: Mounting Screws, Instructions
Glass Fabrication: 3/4" (19 mm) hole required.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
