CRL Floating Headers With Fin Brackets were developed as a means of adding rigidity to 'all-glass' entrances. Fin Supports will reduce the amount of deflection caused by wind or stack load pressure, and impacts. Available for both installations of single or double doors. Custom Floating Headers can cover many configurations, including Headers in custom lengths, glass-to-wall configurations, and Headers prepped for surface mounted magnetic locks, magnetic shear locks, a surface mounted top pivot, a walking beam pivot or an overhead concealed door closer. Headers measure 4" x 1-3/4" (102 x 44.5 mm). For more information, contact DK Hardware Sales Department.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
If the weight of the transom above the header exceeds 100 lbs. (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales Department for assistance.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

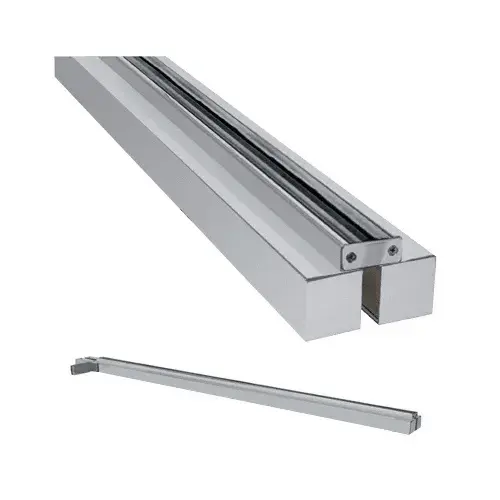

CRL FH4FGWBSCD Brushed Stainless Custom Size Double Door Glass-to-Wall Floating Header with Fin Brackets
Item #: FH4FGWBSCD by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Several Stock Architectural Finishes Available, Custom Finishes Available As Well
- Adds Rigidity and Helps Stabilize Your Opening
- Available for Glass-to-Glass or Glass-to-Wall Installations With or Without Overhead Concealed Door Closers
- Each Floating Header is Customized to Your Needs
- Only Available on Special Order
Height
1-3/4
Length
Custom
Width
4
Finish
Brushed Stainless
Door Configuration
Double Door
Finish/Color
Brushed Stainless Steel
Product Overview
CRL Floating Headers With Fin Brackets were developed as a means of adding rigidity to 'all-glass' entrances. Fin Supports will reduce the amount of deflection caused by wind or stack load pressure, and impacts. Available for both installations of single or double doors. Custom Floating Headers can cover many configurations, including Headers in custom lengths, glass-to-wall configurations, and Headers prepped for surface mounted magnetic locks, magnetic shear locks, a surface mounted top pivot, a walking beam pivot or an overhead concealed door closer. Headers measure 4" x 1-3/4" (102 x 44.5 mm). For more information, contact DK Hardware Sales Department.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
If the weight of the transom above the header exceeds 100 lbs. (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales Department for assistance.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
