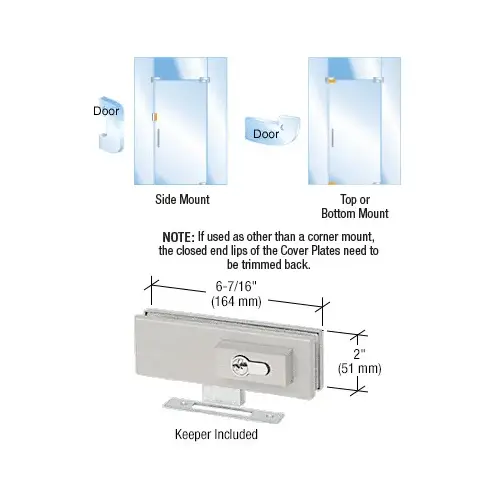

The CRL European Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the EUR206 Sidelite Mount Keeper. Optional "Easy Clean" Bottom Keeper EUR208 is available to accommodate most types of installations.
Glass Fabrication Required:
Top and Bottom Mount:
One Corner Notch Side Mount: One U-Cutout
Includes: Template and Instructions
Double Door Application: For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
NOTE: If used as other than a corner mount, the closed end lips of the Cover Plates need to be trimmed back.
Product Warning:
If used as other than a corner mount, the closed end lips of the Cover Plates need to be trimmed back.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL Brushed Stainless EUR Series Complete Patch Lock Including Cylinder
Item #: EUR205BS by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
Glass Thickness
3/8" or 1/2" (10 or 12 mm)
Finish
Brushed Stainless
Height
2
Finish/Color
Brushed Stainless Steel
Product Overview
The CRL European Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the EUR206 Sidelite Mount Keeper. Optional "Easy Clean" Bottom Keeper EUR208 is available to accommodate most types of installations.
Glass Fabrication Required:
Top and Bottom Mount:
One Corner Notch Side Mount: One U-Cutout
Includes: Template and Instructions
Double Door Application: For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
NOTE: If used as other than a corner mount, the closed end lips of the Cover Plates need to be trimmed back.
Product Warning:
If used as other than a corner mount, the closed end lips of the Cover Plates need to be trimmed back.
