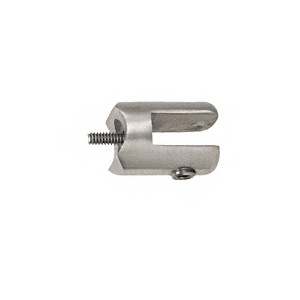

CRL SA50BS Brushed Stainless Fixed Glass Fitting for 1" Tubing
Item #: SA50BS by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Sleek and Modern Design
- Use Monolithic Tempered Glass
- Radius Mounting Base for 1" (25.4 mm) and 1-1/2" (38.1 mm) Diameter Round Tubing
- 1/4" and 3/8" (6 and 10 mm) Thick Glass is Secured with a Vinyl Gasket and a Nylon Tipped Set Screw
- 1/4" to 3/8" (6 to 10 mm) Thick Glass is Secured with a Vinyl Gasket and a Nylon Tipped Set Screw
Shipping Weight
4 oz (113g)
Fits Tubing Diameter
1" (25.4 mm)
Finish
Brushed Stainless
Type
For 1" Tubing
Glazing Thickness
1/4 To 3/8
Material
Stainless Steel
Fitting Type
Fixed
Finish/Color
Brushed Stainless Steel
From Manufacturer
CRL Fixed Glass Fittings offer an easy yet attractive way to secure glass panels to Partition Posts and Sneeze Guards. After mounting to the Tubing the glass panel is simply secured in place with a clear vinyl gasket and a nylon tipped set screw. Works with 1/4" to 3/8" (6 to 10 mm) glass. Can be used on 1" or 1-1/2" (25.4 or 38 mm) Tubing. Fitting for 1" (25.4 mm) tubing comes with a 10-24 Flat Head Screw; fitting for 1-1/2" (38 mm) tubing comes with a 1/4"-20 Flat Head Screw. Matching size Rivet-Nuts are available.
NOTE: Will not fit properly if installed on 2" (51 mm) diameter Round Tubing.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
