CRL LSWM7BS 316 Brushed Stainless Laguna Series Wall Mount Single Slider with Softbrake Kit
Item #: LSWM7BS by CR Laurence
In Stock $1,120.08 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Softbrake Braking System
- Improved Anti-Lift Design
- Assembly Contains All Necessary Hardware to Complete the Installation with 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- Alloy 316 Stainless Steel Construction
Finish
Brushed Stainless Steel
Maximum Panel Weight (Pounds)
100
Anti-Lift
Yes
Track Diameter (Inches)
1-1/4
Glazing Type
Tempered Insulated
Track Length
104
Door Attachment
Flush, Surface
Glazing Thickness
3/8, 1/2
Material
316 Stainless Steel
Door Configuration
Single Door
Minimum Door Width (Inches)
37-13/16
Finish/Color
Brushed Stainless Steel
Maximum Door Height
98-7/16
Minimum Door Width
37-13/16 in. (960 mm)
Maximum Panel Weight
220 lbs. (100 kg)
Track Diameter
1-1/4 in. (32 mm)

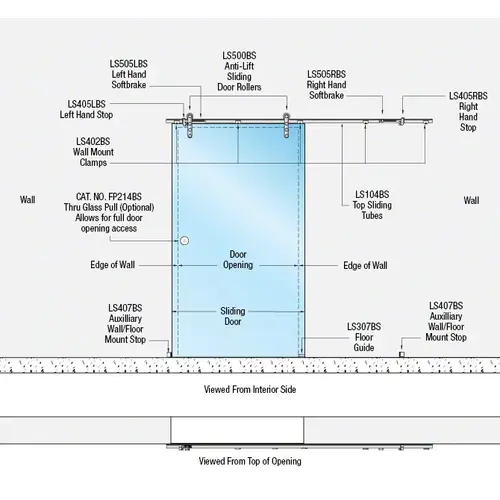

The CRL Laguna Series Wall Mount Single Slider with Softbrake Kit contains all the components you will need (except the tempered glass) to complete a single door installation. The Softbrake braking system helps to control the last 2-1/4" (57 mm) of travel. This model is used in applications where you are attaching a single sliding door to the inside face of a sufficiently reinforced wall.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
