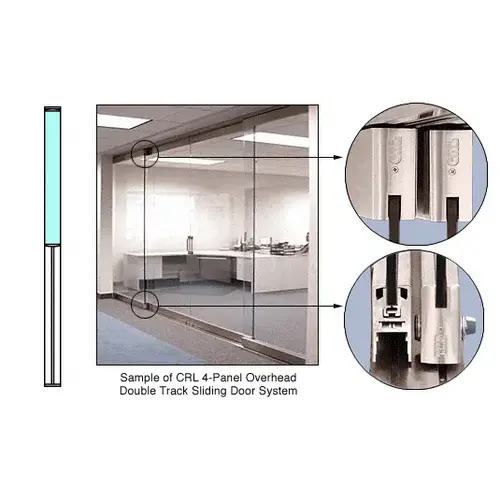

CRL Overhead Track Sliding Door Systems are available in four standard configurations. Each sliding panel is hung from two Cat. No. 0TCA Carriage Assemblies. Maximum panel weight not to exceed 225 lbs. (102 kg). Maximum panel width is 72" (1.83 m). Minimum panel width is 25" (635 mm).
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL 0TS1BS Brushed Stainless Overhead Track Sliding Door System
Item #: 0TS1BS by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Four-Roller Units Silently Move the Door Rails
- Provides a Flush Bottom Surface
Finish
Brushed Stainless
Glazing Thickness
3/8, 1/2
Maximum panel width
72
Finish/Color
Brushed Stainless Steel
Series
OT Overhead Track Slider
Door Bottom Rail (3/8 Inch Glass)
DR4SBS38C
Door Top Rail (1/2 Inch Glass)
DR4SBS12C
Door Bottom Rail (1/2 Inch Glass)
DR4SBS12C
Door Top Rail (3/8 Inch Glass)
DR4SBS38C
Configuration
Single Track 1 Panel Slide
Product Overview
CRL Overhead Track Sliding Door Systems are available in four standard configurations. Each sliding panel is hung from two Cat. No. 0TCA Carriage Assemblies. Maximum panel weight not to exceed 225 lbs. (102 kg). Maximum panel width is 72" (1.83 m). Minimum panel width is 25" (635 mm).
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
