The Sidelite Mounted Transom Curved Patch is used to support a transom from a sidelite glass panel. It comes with a 1NT300 Top Insert for door mounting. On the non-hinged side the Insert can be removed, allowing for a double swinging door. A 1NT306 Transom Patch Door Stop Insert can be used to create a one way door.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) Diameter
Holes and Corner Notch
COMES WITH:
Template and Instructions
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL CPF40BS Brushed Stainless Sidelite Mounted Transom Curved Patch
Item #: CPF40BS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Works with 2-11/16" (68 mm) Pivot Setback Door Patch Fittings

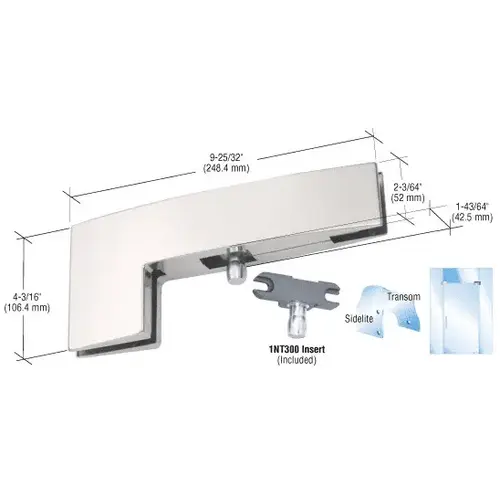

Height
4-3/16" (106 mm)
Length
9-25/32" (248 mm)
Finish
Brushed Stainless
Glazing Thickness
3/8, 1/2
Finish/Color
Brushed Stainless Steel
Mounting Type
Sidelite
Series
Curved
Insert Type

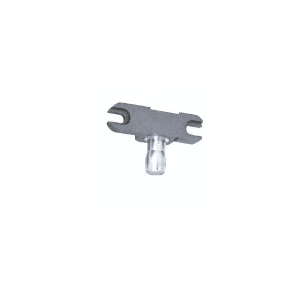

1NT300
With Insert
Yes
Product Overview
The Sidelite Mounted Transom Curved Patch is used to support a transom from a sidelite glass panel. It comes with a 1NT300 Top Insert for door mounting. On the non-hinged side the Insert can be removed, allowing for a double swinging door. A 1NT306 Transom Patch Door Stop Insert can be used to create a one way door.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) Diameter
Holes and Corner Notch
COMES WITH:
Template and Instructions
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
