The 1-7/8" x 1-5/8" (48 x 89 mm) CRL Custom Narrow Floating Header with Surface Mounted Top Pivots work with PH20 Series and PH21 Series Top Door Patch Hardware Fittings, and with all 3/8" or 1/2" (10 or 12 mm) Heavy Glass Door Rails. When used with CRL Door Rails, you get an even sight line, as the width of the Narrow Header matches the width of the Door Rail. For use with Free Swinging Bottom Pivots or Floor Closers. These Headers are custom fabricated per your specific glass-to-glass configurations.
NOTE: Length and installation type must be specified when ordering. For additional assistance regarding other possible configurations, contact DK Hardware Sales Department.
Product Warning:
If the weight of the transom above the header exceeds 100 pounds (45.4 kilograms) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales Department.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

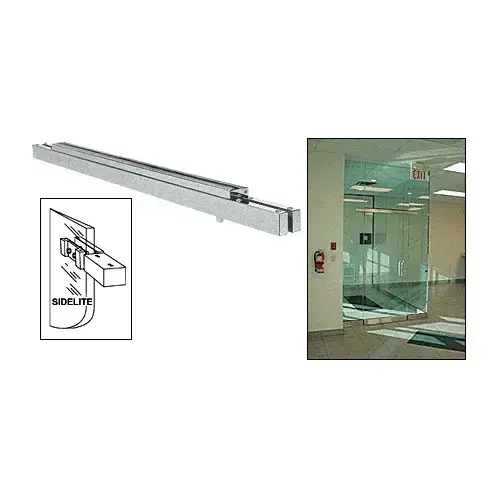

CRL 3NFH4BSCS Brushed Stainless Single Narrow Floating Header with Surface Mounted Top Pivots - Custom Length for 3/4" (19 mm) Glass
Item #: 3NFH4BSCS by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Creates an Even Sight Line When Used with CRL Door Rails
- Custom Sizes and Configurations
- Several Standard Finishes Available: Satin Anodized, Dark Bronze Anodized, Black Anodized, Polished Stainless, Brushed Stainless, Satin Brass and Polished Brass
- Supported by Glass Side Panels
Custom
Custom
Finish
Brushed Stainless
Glass Size
3/4"
Length
Custom
Width
3-15/16
Glazing Thickness
3/4
Finish/Color
Brushed Stainless Steel
Product Overview
The 1-7/8" x 1-5/8" (48 x 89 mm) CRL Custom Narrow Floating Header with Surface Mounted Top Pivots work with PH20 Series and PH21 Series Top Door Patch Hardware Fittings, and with all 3/8" or 1/2" (10 or 12 mm) Heavy Glass Door Rails. When used with CRL Door Rails, you get an even sight line, as the width of the Narrow Header matches the width of the Door Rail. For use with Free Swinging Bottom Pivots or Floor Closers. These Headers are custom fabricated per your specific glass-to-glass configurations.
NOTE: Length and installation type must be specified when ordering. For additional assistance regarding other possible configurations, contact DK Hardware Sales Department.
Product Warning:
If the weight of the transom above the header exceeds 100 pounds (45.4 kilograms) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales Department.
.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
