Brushed Stainless Steel SSR Bottom Rolling Sliding Door System XOX

Roll over image to zoom in

CRL SSR3DBS Brushed Stainless Steel SSR Bottom Rolling Sliding Door System XOX

Item #: SSR3DBS by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails

Style

Bottom Rolling Sliding Door System

Door Configuration

XOX

Type

Tapered

Size

4 inch

Panels

O = Fixed, X = Sliding

Finish

Brushed Stainless Steel

Height

4

Material

Aluminum

Maximum Door Height

108

Maximum Door Width

48

Finish/Color

Brushed Stainless Steel

Minimum Door Width (Inches)

234

Minimum Door Width

234 in. (5944 mm)

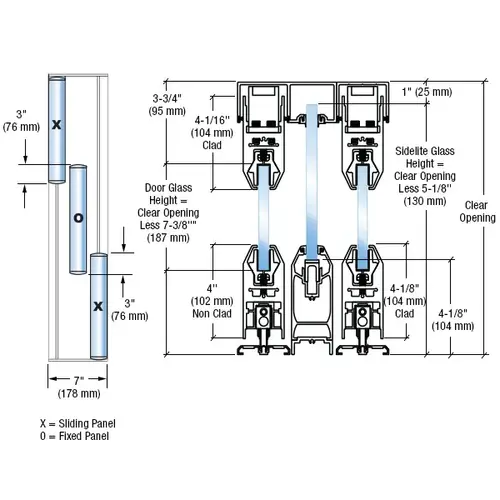

The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) Tapered Rails utilizes our popular Wedge-Lock® Glass Securing System found in the DR4T Series Door Rails on all sliding panels. They can be ordered with or without locks in the bottom rail.
The fixed panels utilize our popular SR4T Series Sidelite Rails with roll-in vinyl at the bottom of the panel, and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg). All panels are custom fabricated to your specifications.

.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
