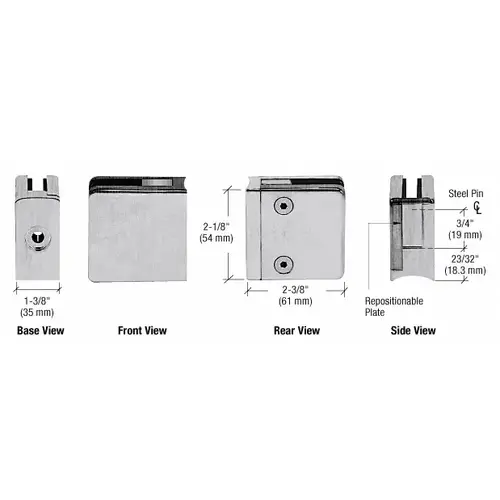

CRL ZL710BS Brushed Stainless Steel Z-Series Square Type Radius Base Zinc Clamps for 3/8" and 1/2" Glass with Repositionable Plate
Item #: ZL710BS by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 3/8" or 1/2" (10 or 12 mm) Glass
- For Use with 2" (51 mm) Diameter Round Tubing
- Radius Surface Mounting
- Repositionable Plate for Use at Right or Left Corner of Glass
- Use Monolithic Tempered Glass
Width
2-1/8
Height
2-3/8
Finish
Brushed Stainless Steel
Material
Zinc
Depth
1-3/32
Glazing Thickness
3/8 to 1/2
Profile
Square
Finish/Color
Brushed Stainless Steel
This CRL Z-Series Square Type Radius Base Glass Clamp with Repositionable Plate is designed to be used on glass thickness of 3/8" (10 mm) and 1/2" (12.7 mm). Constructed from stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
SPECIFICATIONS:
Glass Thickness: 3/8" or 1/2" (10 or 12 mm).
Base Design: Radius.
For Use With: 2" (51 mm) Diameter Round Tubing.
Material: Stainless Steel
Glass Fabrication:
For 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Repositionable Plate for Use at Right or Left Corner of Glass.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
