CRL SA61BS Brushed Stainless Swivel Hinge Glass Fitting
Item #: SA61BS by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Radius Mounting Base for 1-1/2" (38 mm) Diameter Round Tubing
- 1/4" and 3/8" (6 and 10 mm) Thick Glass is Secured with a Vinyl Gasket and a Nylon Tipped Set Screw
- 1/4" to 3/8" (6 to 10 mm) Thick Glass is Secured with a Vinyl Gasket and a Nylon Tipped Set Screw
- Use Monolithic Tempered Glass
1/4 To 3/8
Brushed Stainless Steel

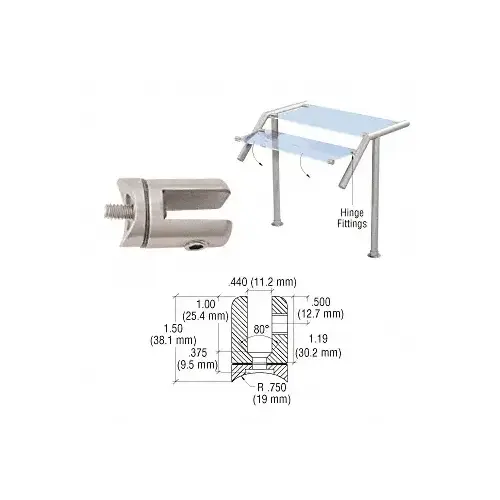

CRL Swivel Hinge Glass Fittings allow the glass panel to be swiveled up for access when attached to our Round Tubing and the glass. Works with both 1/4" to 3/8" (6 to 10 mm) glass. Fitting is for 1-1/2" (38 mm) Tubing and supplied with a 1/4"-20 Flat Head Screw.
NOTE: Will not fit properly if installed on 2" (51 mm) diameter Round Tubing.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
