Brushed Stainless Z-Series Round Type Flat Base Stainless Steel Clamp for 1/2" Glass

Roll over image to zoom in

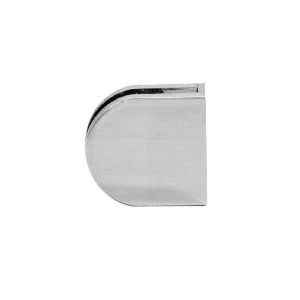

CRL Z512BS Brushed Stainless Z-Series Round Type Flat Base Stainless Steel Clamp for 1/2" Glass

Item #: Z512BS by CR Laurence

1 1 reviews

In Stock $36.90 /each

SAVE UP TO 3.69

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • For 1/2" (12 mm) Glass
  • Replacement Gaskets are Available by Ordering Cat. No. Z12RG
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Custom Painted Finishes Available Upon Request
  • Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)

Height

2-5/16

Shipping Weight

8 oz (227g)

Width

2-1/8

Finish

Brushed Stainless

Material

Stainless Steel

Type

SS W/Flat Base & Fits 1/2" Glass

Depth

1-7/32

Glazing Thickness

1/2

Profile

Round

Finish/Color

Brushed Stainless Steel


This CRL Z-Series Round Type Flat Base Glass Clamp is designed to be used on glass thickness of 1/2" (12 mm) Glass. Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8”), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32” (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16” Mandrel and Nosepiece.
NOTE: 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.




SPECIFICATIONS
Glass Thicknesses: For 1/2" (12 mm).
Base Design: Flat
For Use With:Square Tubing or Other Flat Surfaces
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
Replacement Hardware: CRL P612 for Replacement Screws
Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.

.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
