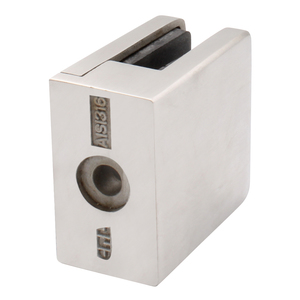

CRL Z912BS Brushed Stainless Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass

  • For 1/2" (12 mm) Glass Thickness
  • Replacement Gaskets are Available by Ordering Cat. No. Z12SG
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)
  • Custom Painted Finishes Available Upon Request
See Full Product Description
SALE

$25.73 /each

Qty

In stock
Quick Shipping

Usually ships in 1 business day*

SALE
+
In stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • For 1/2" (12 mm) Glass Thickness
  • Replacement Gaskets are Available by Ordering Cat. No. Z12SG
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)
  • Custom Painted Finishes Available Upon Request

  • Product Description
  • Technical Details 16
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Height

2-5/16" (58.7 mm)

Minimum Order

1 Each

Shipping Weight

8 oz (227g)

Width

2-1/8" (54 mm)

Finish

Brushed Stainless

  • For 1/2" (12 mm) Glass Thickness
  • Replacement Gaskets are Available by Ordering Cat. No. Z12SG
  • For Use on Mezzanines, Partitions, Railings and Windbreaks
  • Use Monolithic Tempered Glass
  • Steel Pin Available for Additional Glass Support
  • Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)
  • Custom Painted Finishes Available Upon Request
CRL Brushed Stainless Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass is used to position glass thickness of 1/2" in railings. It provides a perfect solution for partitions, railings, windbreaks and countless other projects. CRL Brushed Stainless Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass has been tested and engineered to meet and exceed code standards and legal requirements. The flat base allows for installation onto square tubing or other flat surfaces. The clamp includes an optional steel pin for additional weight support. These clamps are the perfect solution for partitions, railings, windbreaks and countless other projects. specifications: Glass Thicknesses: Models for 1/4" to 1/2" (6 to 12 mm). Base Design: Flat. For Use With: Square Tubing or Other Flat Surfaces. Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications. Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support. Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet. For securing the Z-Clamp to thin wall tubing (less than 1/8"), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 1/2" (12 mm) hole, insert the riv-nut, align the clamp with the bolt and drilled hole and start threading the bolt into the nut which results in compressing the nut. NOTE: 9/16" (14.3 mm) hole is required if using the steel pin (included with the clamp) for additional glass support. Important Notes For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp. DS 06/28/2016

From Manufacturer

This CRL Z-Series Square Type Flat Base Glass Clamp is designed to be used on glass 1/2" (12 mm) thickness. Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For securing the Z-Clamp to thin wall tubing (less than 1/8”), use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32” (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16” Mandrel and Nosepiece.
NOTE: 9/16" (14.3 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.
SPECIFICATIONS:
Glass Thicknesses: Models for 1/4" to 1/2" (6 to 12 mm)
Base Design: Flat
For Use With: Square Tubing or Other Flat Surfaces
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet Important Notes: For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.
