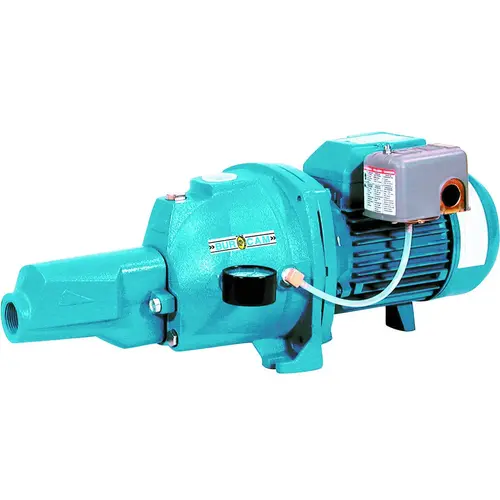

Burcam 506321 Jet Pump, 8 A, 115 V, 0.5 hp, 1 in Connection, 80 ft Max Head, 10.8 gpm, Iron
Item #: 506321 by BUR-CAM PUMPS INC
UPC #: 772910063214
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Cast iron convertible jet pump
- SW operation 0 -25 ft with ejector screwed on pump body
- DW operation 0 - 80 ft with 2 pipes and ejector down in the well
- High-performance noryl impeller
- Industrial motor totally enclosed, fan cooled
- Full time connected run capacitor, to eliminate starting wear regular motor
- Thermal and overload protection
- Built for a continuous use
Returnable
Yes
Maximum Discharge Flow
650 gph
Height
11"
Defective Code
A
Corrosion Resistant
No
Self Priming
Non-Self Priming
Pump Switch Type
Pressure
Volts
115/230 V
Agency Compliance
CSA
Discharge Pipe Size
1"
With Tank
No
Maximum Feet of Head
80 ft.
Product Type
Convertible Jet Pump
Housing Material
Cast Iron
Horsepower
1/2 HP
AMPS
8 amps
Each Weight
36.100 LB
Velocity
X
Hazardous Material
No
Material
Iron
Connection Size
1"
Maximum Head
80 ft
Motor Type
Fan Cooled
Frequency Rating
60 Hz
Pressure rating
85 psi
HP Rating
0.5 hp
Nomenclature
506321 CONVERT JET PUMP 1/2HP
Current Rating
8 A
Connection Type
NPT
Product Overview
CONVERTIBLE JETPMP CSTIR 1/2HP
Specifications:
Specifications:
Suitable for: Deep and Shallow Wells
Cast iron convertible jet pump. SW operation 0 to 25 ft with ejector screwed on pump body. DW operation 0 to 80 ft with 2 pipes and ejector down in the well. High performance Noryl impeller, industrial motor totally enclosed, fan cooled. full time connected run capacitor, to eliminate starting wear vs regular motor. Thermal and overload protection, built for a continuous use. 1/2 hp TEFC motor, 115/230 V. Maximum pressure of 85 psi. Capacity at 20 psi, 650 gph/5 ft, 565 gph/10 ft, 485 gph/15 ft, 365 gph/20 ft, 245 gph/25 ft, 575 gph/30 ft, 465 gph/40 ft, 365 gph/50, ft 170 gph/80, ft 1 in NPT suction. 1 in NPT discharge. 38 lb (17.27kg).
