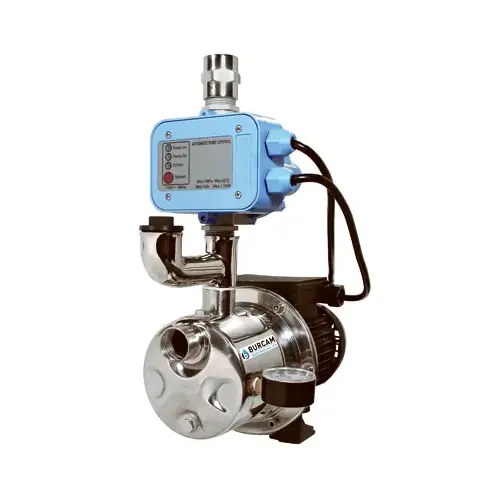

Burcam 506532SS Jet Pump, 7.5 A, 115 V, 0.75 hp, 1 in Connection, 25 ft Max Head, 900 gph, Stainless Steel
Item #: 506532SS by BUR-CAM PUMPS INC
UPC #: 772910065324
In Stock $490.13 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Stainless steel shallow well jet pump
- Mounted with a pressure regulator
- Electronic system eliminates the conventional tank and pressure switch to start and stop the pump, It regulates and controls the delivery of water
- Maintains a constant pressure without the inconvenience of fluctuating pressure, which is especially useful when taking a shower along with many other applications
- Pump system easily portable, compact, easy-to use and store in winter time
- Protects the pump from running dry in case of low water level in well
- It regulates and controls the delivery of water
Height
18.50
Length
9.50
Width
16.50
Brand
Burcam
Cord Length (ft.)
10
Hazardous Material
No
Impeller Material
Thermoplastic
ECCN
EAR99
Amperage (amp)
9
Discharge Flow @ 0 ft. (gph)
900
Head Pressure (ft.)
25
Maximum Pressure (PSI)
60
Power Type Required
Electricity
Voltage (V)
115V
Water Pumps & Tanks Product Type
Shallow Well Pump
Housing Material
SS/Thermoplastic
Country Origin Code
CA
Material
Stainless Steel
Connection Size
1"
Maximum Head
25 ft
Motor Type
Fan Cooled
Frequency Rating
60 Hz
Pressure rating
75 psi
HP Rating
0.75 hp
Nomenclature
506532SS PUMP SHALLOW WELL 3/4
Current Rating
7.5 A
Connection Type
NPT
Specifications:
Suitable for: Shallow Wells
3/4 hp stainless steel pressure booster/tankless jet pump system. Water supply pressure booster can be used to increase and maintain municipal water pressure. Tankless shallow well jet pump to deliver constant pressure without annoying pressure fluctuations. Eliminates need for pressure switch or tank. Up to 900 gph, 65 psi, maximum vertical lift of 25 ft. Electronic control prevents pump from running dry. Easy to install. No electrical wiring required. For booster pump applications, a water pressure regulator is required. Totally enclosed 115 V motor. Compact and portable design.
