NOTE: Not Available in Germany.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 39" (914 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 39" (914 m).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Stainless Steel or Solid Brass
Hinge Swings: See descriptions next to photos of hinges.
Closing Type: Free-Swinging
Two Holes Required Per Hinge Per Panel (No Cut-Out)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

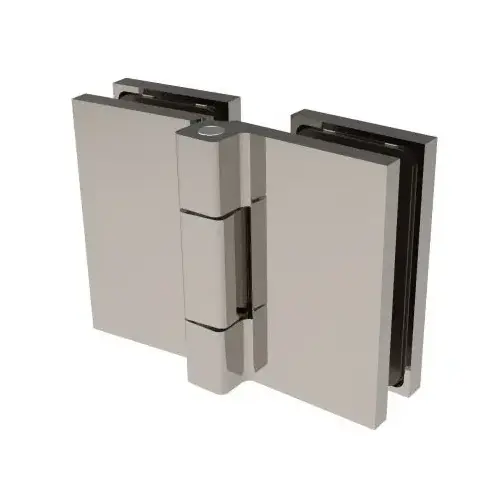

CRL C0M180CH Polished Chrome Como Series 180 degreeGlass-to-Glass hinge
Item #: C0M180CH by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Glass-to-Glass Inline Outswing
- Works with 5/16" to 3/8" (8 to 10 mm) glass
- Allows Saloon Door Configuration
- Ideal for Wheelchair Accessibility
- Snap-on Covers Conceal Screws
- Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard
Height
3-1/8
Finish
Chrome
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
5/16 To 3/8
Swing
Outswing Only
Edge Profile
Square
Finish/Color
Chrome
Series
Como
Self-Centering
No
Maximum Door Width - 2 Hinges
39"
Maximum Door Width - 3 Hinges
39"
Maximum Door Weight - 3 Hinges
150 Lbs.
Maximum Door Weight - 2 Hinges
110 Lbs.
Glass To Glass Angle
180 degrees
Maximum Door Weight
110
Maximum Door Width
39
Width - Sidelite Portion
2-1/16"
Width - Door Portion
2-1/16"
Opening Style
Swing(side)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Design Style
Concealed/Premium
Product Overview
The CRL COMO Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. Only two holes per Hinge per panel are required, with no cut-out necessary.
NOTE: Not Available in Germany.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 39" (914 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 39" (914 m).
SPECIFICATIONS:
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
