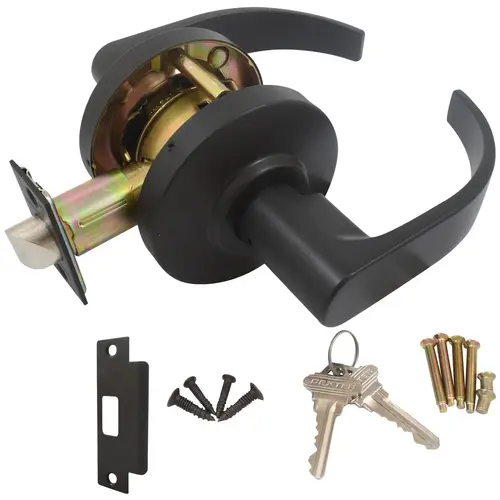

Dexter C2000-STRM-C-613-KDC C2000-STRM-C-613-KDC Curved Storeroom Non-Clutching - Oil-Rubbed Bronze
Item #: C2000-STRM-C-613-KDC by Dexter by Schlage
Brand: Dexter
UPC #: 043156535583
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- 1 3⁄8" to 1 3⁄4" door range standard
- Brass (605) ball knobs come packaged with square-corner beveled latch with 2 3⁄8" backset and ANSI 1 1 ⁄4" x 2 1 ⁄4" T-Strike standard.
- All other functions (except dummy) include 1 1 ⁄8" x 2 1 ⁄4" square-corner beveled latch with 2 3⁄4" backset and ANSI 1 1 ⁄4" x 4 7 ⁄8" curved lip strike (30-148)
- Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
- Accommodate SFIC to accept 6-pin/7-pin
Grade
ANSI/BHMA Grade 2
Thickness
1-3/8 In. - 1-3/4 In.
Hand
Not Handed
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Keyway
SC4 6-Pin Pin & Tumbler
Function
Storeroom
Keying
Keyed Different
Cylinder Type
Conventional Cylinder
ADA Compliance
Yes
ANSI Function
F86 - Storeroom
Bolt Protection
1/2 In.
Latch Backset Dim
2-3/4 In.
Latch Type
Deadlatch
Lever/Knob Design
C - Curved
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Special Marks
Conventional cylinder, Complies with ADA accessibility guidelines
Strike Height
4-7/8 In.
Strike Type
ANSI Curved Lip
Strike Width
1-1/4 In.
Number of Pins
6
Finish
Oil-Rubbed Bronze
Backset
2-3/4 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Design
Curved Lever
Series
C2000 Series
Finish Description
Oil Rubbed Dark Bronze
Lever Style
C-Curved
Keyblank Grouping
DEXT-SCHL-C-6-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Door Thickness
1 3/8" - 1 3/4"
Bore Size
2.1250
ADA Approved
False
Keying Charges
CCAM
Strike Description
1-1/4" X 4-7/8" CURVED LIP
Box Length
7.2000
Box Width
6.7000
Box Height
3.6000
Alternate Part Number-1
156300
Handle Type
Lever
Strike Number
30-148
ADA Compliant
YES
Finish Family
Dark Bronze
Strike Size
1-1/4" x 4-7/8"
Door Cross Bore
2.125 Inch
Standards
UL Listed 3-Hour
Cylinder Type Used
Conventional
Front Size
1-1/8" x 2-1/4"
Function Family
Storeroom
Strike Lip
1-1/4 Inch
Manufacturer Parent
Allegion
Latch Corner
Square
Box Dimensions (L x W x H)
7.2 x 6.7 x 3.6
Lever Style Family
Curved Return Lever
Sub-Series
CL_Cylindrical_Locks_dexter_commercial_45
Handing
Non-Handed
Cylinder Included
Yes
Finish code
613
Latch Bolt Type
Deadlatch
Knob/Lever Design
Curved
Latch Bolt Faceplate Size
2-1/4" x 1-1/4"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Square Corner
Latch Bolt Throw
1/2"
Door Thickness Max
1-3/4"
Knob/Lever Style
Lever
Collection
Curved
Package Height
3.6"
Package Length
7.2"
Package Width
6.7"
Item Weight
3.53 lbs
Height
3.63
Length
7.25
Width
6.88
MADE IN THE USA
No
Security Grade
ANSI Grade 2
Package Quantity
1
UL Listed
No
Door Handing
Non-Handed
Interchangeable Core
Interchangeable Core
AbilityOne
No
UNSPSC
46171503
Commercial/Residential
Commercial
Style
Lever
Assembled Product Height
4.88 in.
Lockset Function
Storeroom
Assembled Product Width
6.7 in.
GSA Approved
No
TAA/BAA Compliant
Yes
Backset Size
2-3/4 in.
Rough Opening
2.1 in.
ANSI/BHMA Standards
F86
Keyed
Yes
Latch Faceplate
1" x 2-1/4"
Cylinder
KDC - Conventional Cylinder, 6-pin, Schlage C, KD
Lever Design
Curved Lever, Non-clutching
Standard Strike
C2000-ACLS: ANSI 1-1/4" x 4-7/8" curved lip strike
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
C2000-SD-234: Deadlatch, 2-3/4" Backet, 1" Diameter
Dimension
3-5/16" Rose
Material
Bronze
Manufacturer Warranty
Limited 5 Year Mechanical Warranty
Rose/Escutcheon Design
Round Rose
UL Listing Type
UL Listed 3 Hour
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/4" x 4-7/8"
Cross Bore Size
2-1/8" Bore
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Lever Knob Design
Curved Lever
No of inners
1
No Of Pins
6 Pin
Product Overview
Dexter C2000 Series Grade 2 Cylindrical Locks Specifications
- Grade 2, UL listed 3 hour;
- 1-3/8" to 1-3/4" door range standard;
- Brass (605) ball knobs come packaged withsquare-corner beveled latch with 2-3/8" backset and ANSI 1-1/4" x 2-1/4" T-Strike standard.
- All other functions (except dummy) include 1-1/8" x 2-1/4" square-corner beveled latch with 2-3/4" backset and ANSI 1-1/4" x 4-7/8" curved lip strike (30-148)
- Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
- Accommodate SFIC to accept 6-pin/7-pin
