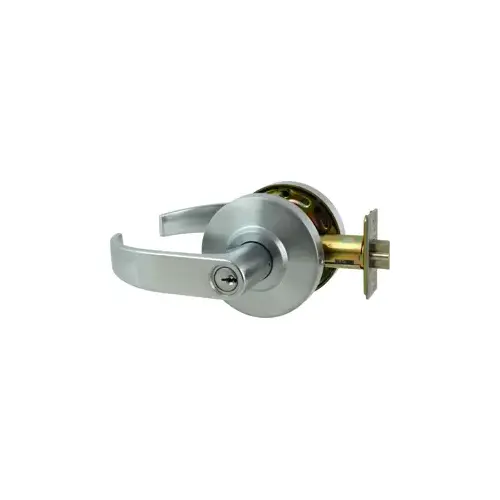

Grade 2 Storeroom Curved Lever, Schlage C Keyway, Keyed Different, ANSI Strike (4-7/8" x 1-1/4"), 2-3/4" Backset, 626/US26D Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dexter C2000-STRM-C-626-KDC Grade 2 Storeroom Curved Lever, Schlage C Keyway, Keyed Different, ANSI Strike (4-7/8" x 1-1/4"), 2-3/4" Backset, 626/US26D Satin Chrome

Item #: C2000-STRM-C-626-KDC by Dexter by Schlage

UPC #: 043156535576

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$68.88

/each
SAVE UP TO 6.89
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 55 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • 1 3⁄8" to 1 3⁄4" door range standard
  • Brass (605) ball knobs come packaged with square-corner beveled latch with 2 3⁄8" backset and ANSI 1 1 ⁄4" x 2 1 ⁄4" T-Strike standard.
  • All other functions (except dummy) include 1 1 ⁄8" x 2 1 ⁄4" square-corner beveled latch with 2 3⁄4" backset and ANSI 1 1 ⁄4" x 4 7 ⁄8" curved lip strike (30-148)
  • Schlage C cylinders are 6-pin cylinders keyed 6, keyed different
  • Accommodate SFIC to accept 6-pin/7-pin

Thickness

1-3/8 In. - 1-3/4 In.

Color

Satin Chrome

Function

STRM-Storeroom

Latch Type

Deadlatch

ANSI Function

F86 - Storeroom

Hand

Not Handed

Grade

ANSI/BHMA Grade 2

Special Marks

Conventional cylinder, Complies with ADA accessibility guidelines

Strike Width

1-1/4 In.

ADA Compliance

Yes

Latch Backset Dim

2-3/4 In.

Cylinder Type

Conventional Cylinder

Lock Face Size

2-1/4 In. x 1-1/8 In.

Package Qty

1

Keying

Keyed Different

Bolt Protection

1/2 In.

Color Code

626/US26D

Strike Type

ANSI Curved Lip

Keyway

Schlage C

Strike Height

4-7/8 In.

Lever/Knob Design

C - Curved

Finish

Satin Chrome

Backset

2-3/4 Inch

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Design

Curved Lever

Series

C2000 Series

Finish Description

Satin Chrome

Lever Style

C-Curved

Keyblank Grouping

DEXT-SCHL-C-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Door Thickness

1 3/8" - 1 3/4"

Bore Size

2.1250

ADA Approved

False

Keying Charges

CCAM

Strike Description

1-1/4" X 4-7/8" CURVED LIP

Box Length

7.2000

Box Width

6.7000

Box Height

3.6000

Alternate Part Number-1

156302

Strike Size

1-1/4" x 4-7/8"

Strike Number

30-148

Manufacturer Parent

Allegion

Sub-Series

CL_Cylindrical_Locks_dexter_commercial_45

Lever Style Family

Curved Return Lever

ADA Compliant

YES

Front Size

1-1/8" x 2-1/4"

Handle Type

Lever

Door Cross Bore

2.125 Inch

Box Dimensions (L x W x H)

7.2 x 6.7 x 3.6

Function Family

Storeroom

Standards

UL Listed 3-Hour

Latch Corner

Square

Cylinder Type Used

Conventional

Strike Lip

1-1/4 Inch

Finish Family

Satin Chrome

Handing

Non-Handed

Cylinder Included

Yes

Finish code

626

Latch Bolt Type

Deadlatch

Knob/Lever Design

Curved

Latch Bolt Faceplate Size

2-1/4" x 1-1/4"

Door Bore Size

2-1/8"

Lock Category

Cylindrical Lock

Door Thickness Min

1-3/8"

Latch Bolt Face Type

Square Corner

Latch Bolt Throw

1/2"

Door Thickness Max

1-3/4"

Knob/Lever Style

Lever

Height

3.63

Length

7.25

Width

6.88

Dimension

3-5/16" Rose

Material

Brass and Bronze

Manufacturer Warranty

Limited 5 Year Mechanical Warranty

Rose/Escutcheon Design

Round Rose

UL Listing Type

UL Listed 3 Hour

Door Range

1-3/8" to 1-3/4"

Hazardous Material

No

Strike Dimension

1-1/4" x 4-7/8"

Cross Bore Size

2-1/8" Bore

Latch Faceplate Dimension

1-1/8" x 2-1/4"

Lever Knob Design

Curved Lever

No of inners

1

No Of Pins

6 Pin Cylinder

Product Overview
C2000 SeriesGrade 2 cylindrical locks

Allegion’s newest product line, Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.

Specifications:
  • Grade 2, UL listed 3 hour
  • 1 3/8" to 1 3/4" door range standard
  • Brass (605) ball knobs come packaged with square-corner beveled latch with 2 3/4" backset and ANSI 1 1/4" x 2 1/4" T-Strike standard.
  • All other functions (except dummy) include 1 1/8" x 2 1/4" square-corner beveled latch with 2 3/4" backset and ANSI 1 1/4" x 4 7/8" curved lip strike (30-148)
  • Accommodates Schlage conventional 6-pin (keyed 6) in Schlage C keyway, keyed different and SFIC cylinders
Function and lever features: PASS:
  • F75 Passage (non-clutching)
PRIV:
  • F76 Privacy (non-clutching)
SDUM:
  • Single dummy (non-clutching)
CL-ENTR:
  • F109 Entry/office (clutching)
ENTR:
  • F109 Entry/office (non-clutching)
CL-CLRM:
  • F84 Classroom(clutching)
CLRM:
  • F84 Classroom (non-clutching)
CL-STRM:
  • Storeroom (clutching)
STRM:
  • Storeroom (non-clutching)
Designs:
  • Regular lever
  • Curved lever
  • Ball knob
Finishes:
  • 6051
  • 613
  • 6262
  • 6302
  • 1 605 finish not available on Curved lever design.
  • 2 Use 626 finish when ordering lever designs and 630 finish for Ball design.
