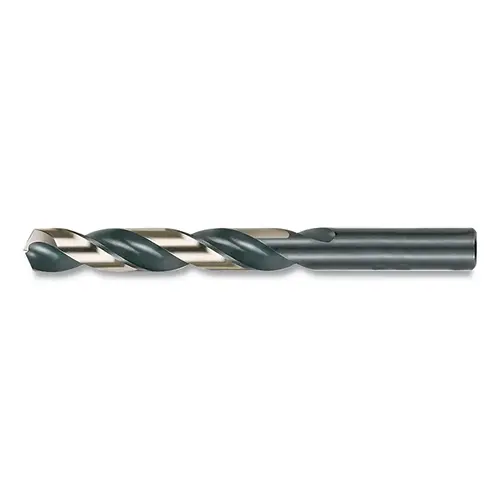

Cle-Line C74024-XCP6 1878 Heavy-Duty Black and Gold with Flats Jobber-Length Drill Bit, 0.4921 in dia Cutting, 5.9449 in dia OAL, 12.50 mm - pack of 6
Item #: C74024-XCP6 by Cle-Line
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Black and Gold
Material
High-Speed Steel (HSS)
Bit Length
5.9449 in
Type
Style 1878
Shank Type
Straight
Flute Length
3.9764 in
Point Angle
135° RHS/RHC
No of Flutes
2
Point Shape
Split
Nominal Diameter
12.50 mm
Cutting Diam [Nom]
0.4921 in
Overall Length [Nom]
5.9449 in
Flute Type
Regular Spiral
Overall Length (mm)
150.88
Number of Flutes
2
Standards
ASME B94.11M
Cutting Direction
Right Hand
Series
1878
Point Type
Split Point
Drill Bit Material
HSS
Spiral Type
Regular
Coating/Finish
Black/Gold
Coolant Through
No
Drill Bit Grade
Heavy Duty
Drill Bit Size (Decimal Inch)
0.4900
Drill Bit Size (mm)
12.50
Drill Bit Size Range (Decimal Inch)
0.4000 - 0.5000
Drill Point Angle
135 degrees
Flute By Diameter Ratio
3xD
Flute Length (Decimal Inch)
3.9800
Flute Length (mm)
101.09
Material Grade
High-Speed Steel
Maximum Drilling Depth (Decimal Inch)
1.2300
Number of Flats
3
Overall Length (Decimal Inch)
5.9400
Primary Workpiece Material
Steel
Primary Workpiece Material Code
K
Shank Diameter (Decimal Inch)
0.4900
Shank Length (Decimal Inch)
1.9700
Tool Performance
High Performance
UNSPSC Code
23241634
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
+0.0000 to -0.0010 in
Drill Bit Size Range (mm)
12.50 - 15.00
Specification Designation
DIN
Web Configuration
Tapered
Product Overview
Manufactured from premium high-speed steel (HSS)
Black and Gold surface finish holds lubricant for smoother drilling
For general purpose drilling and maintenance applications.
Black and Gold surface finish holds lubricant for smoother drilling
For general purpose drilling and maintenance applications.
