5 Pushbutton Cabinet Door Deadbolt, 5/8" to 7/8" Thick Wood Doors, 626/US26D Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

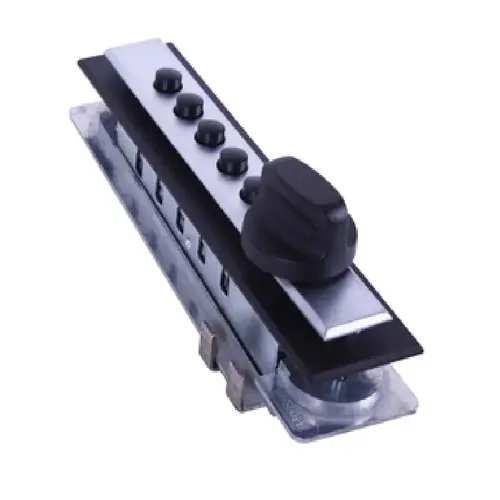

Kaba Access C9601-26D-41 5 Pushbutton Cabinet Door Deadbolt, 5/8" to 7/8" Thick Wood Doors, 626/US26D Satin Chrome

Item #: C9601-26D-41 by Ilco

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$128.16

/each
SAVE UP TO 12.82
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 42 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Construction: All metal cast face plate; force-resistant, protected exterior knob
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Non-handed
  • Bolt: End-throw/cross-throw deadbolt (must be manually relocked) End-throw/cross-throw spring latch (with automatic relock)
  • Door Thickness: Wood doors: ⅝" (16 mm) to ⅞" (22 mm) Sheet metal applications: 14 to 20 gauge 1⁄3", 1⁄16", 1⁄4"
  • Installation: Horizontal or vertical. Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications). Punched slot or series of 7⁄16" (11 mm) drilled holes (for metal applications).
  • Warranty: 1-year warranty

Color

Satin Chrome

Color Code

626/US26D

Lock Platform

Cabinet Lock

Package Qty

1

Base Material

Brass or Bronze

Handing

Non-Handed

Function

Combination Entry

Door Thickness

5/8" - 7/8" (Wood)

Options

Cross Throw Bolt

Access Type

Mechanical

Alternate Part Number-1

129698

Lock Category

Cabinet Lock

Proximity Format

Pushbutton Combination

Knob/Lever Style

Knob

Manufacturer Parent

DormaKaba

Locking Device

Deadbolt

Finish Description

Satin Chrome

Hand

Non-Handed

Sub-Series

C9601-26D-41

Handle Type

Clutch Ball Bearing Knob

Application

Cabinet Doors; Desk Drawers

Programming Method

Keypad

Number of Access Codes

1

Product Type

Cylindrical Lock

Features

No Battery Fully mechanical lock; Pushbutton access; A cost effective access control solution; force-resistant protected exterior knob; Vandal resistant; solid metal pushbuttons

Warranty

1 Year

Finish Family

Satin Chrome

Height

1.63

Length

9.5

Width

2.5

Product Overview

Cabinet Lock, Wood Application, 5/8" to 7/8" Door Thickness, End Throw, Clutch Ball Bearing Knob, With Trim Plate, Standard Deadbolt, Satin Chrome

The 9600 Series is specifically designed for cabinet doors, desk drawers, and similar applications.
