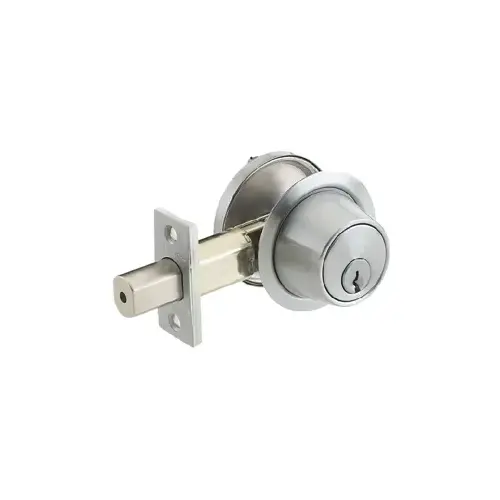

Cal Royal CB162-US15 HEAVY DUTY DOUBLE CYL DEADBOLT Satin nickel

Item #: CB162-US15 by Cal Royal

Brand: Cal Royal

See reviewsSee reviews
See reviews summary
In Stock

$61.88

67.44 /each
SAVE UP TO 6.19
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available

Finish: Satin nickel

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Alternate Part Number-1

154739

Grade

Grade 2

Backset

2-3/4", 2-3/8"

Handing

Non-Handed

Keyway

Cal Royal C

Function

Double Cylinder Deadbolt

Cylinder Included

Yes

Cylinder Type

6-pin Cylinder

Strike Size

2-3/4" x 1-1/8"

Finish code

US15

Latch Bolt Type

Deadbolt

Rose/Escutcheon Size

2-1/2"

Latch Bolt Faceplate Size

2-1/4" x 1"

Door Bore Size

2-1/8"

Lock Category

Cylindrical Lock

Door Thickness Min

1-3/8"

Latch Bolt Face Type

Square Corner

Latch Bolt Throw

1"

Rose/Escutcheon Style

Adapter Ring

Door Thickness Max

1-3/4"

Knob/Lever Style

Keyed Both Sides

Finish

Satin Nickel

Keyed

Yes

Standard Strike

1-1/8" x 2-3/4", Square Corner

Front Size

2-1/4" x 1"

Features

2-5/8" Diameter Adapter Ring for 2-1/8" Door Preparations; 2" Diameter Tampered Cylinder Guard and Metal Insert, Turns Free With Any Removal Attempt; Standard Commercial and Residential Applications

Product Overview

Cal-Royal CB160 / GL160Series Standard Duty Deadbolts - Gate Latches

FOR LIGHT COMMERCIAL AND RESIDENTIAL APPLICATIONS

SPECIFICATIONS:

  • TRIM: Wrought Brass or Stainless Steel
  • DOOR RANGES: Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness.
  • BACKSET: Adjustable 2-3/8" or 2-3/4"
  • DEADBOLT FACEPLATE: Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations.
  • BORE DIAMETER: 1" for latch, 1-1/2" or 2-1/8" for lock housing.
  • STRIKE: 1-1/8" x 2-3/4" Square Corner.
  • KEYWAYS: Standard 6-pin solid brass "C" keyway. Optional Schlage C-K composite with "E" keys, Schlage "E", Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.

    • SERIES FUNCTIONS

  • CB160 - Heavy Duty Single Cylinder Deadbolt.
  • Deadbolt thrown or retracted by key from outside or by insideturn unit. Bolt automatically deadlocks when fully thrown.
  • CB162 - Heavy Duty Double Cylinder Deadbolt.
  • Deadbolt thrown or retracted by key from either side. Boltautomatically deadlocks when fully thrown.
  • GL160 - Single Cylinder Gate Latch (2-3/8" backset)
  • Dead locking latch bolt retracted by key from outside and thumbturn on inside. Otherwise always locked.
  • GL162 - Double Cylinder Gate Latch (2-3/8" backset)
  • Dead locking latch bolt retracted by key from either side.Otherwise always locked.
  • GL160/234 - Single Cylinder Gate Latch (2-3/4" backset)
  • Dead locking latch bolt retracted by key from outside and thumbturn on inside. Otherwise always locked.
  • GL162/234 - Double Cylinder Gate Latch (2-3/4" backset)
  • Dead locking latch bolt retracted by key from either side.Otherwise always locked.

    • AVAILABLE FINISHES

  • 605/US3 Polished Brass
  • 606/US4 Satin Brass
  • 609/US5 Antique Brass
  • 612/US10 Satin Bronze
  • 613/US10B Oil Rubbed Bronze
  • 619/US15 Satin Nickel
  • 625/US26 Bright Chrome
  • 626/US26D Satin Chrome
