Mechanical Push Button Lock, Storeroom Function, 1 Entry Code of 1-12 Digits, Clutched, Schlage C Keyway 6-Pin, 2-3/4" BS, Non Handed, ASA Strike, Grade 2, 626/US26D Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

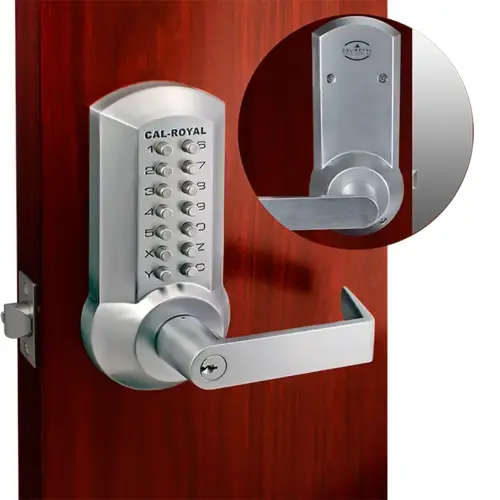

Cal Royal CRCODE202 US26D Mechanical Push Button Lock, Storeroom Function, 1 Entry Code of 1-12 Digits, Clutched, Schlage C Keyway 6-Pin, 2-3/4" BS, Non Handed, ASA Strike, Grade 2, 626/US26D Satin Chrome

Item #: CRCODE202 US26D by Cal Royal

Brand: Cal Royal

See reviewsSee reviews
See reviews summary
In Stock

$399.88

507.50 /each
SAVE UP TO 39.99
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 201 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cylinder

Standard

Alternate Part Number-1

200143

Finish

Satin Chromium Plated

Backset

2-3/4" standard

Latch Faceplate

2-1/4" x 1-1/8"

Door Handing

Non-handed; field reversible

Door Thickness Range

CRCODE202: 1-3/8" to 2-1/4", CRCODE203: 1-3/4", CRCODE204: 1-3/4" to 2"

Finishes

626-Satin Chrome

Cylinder Compatibility

Accepts Medeco, Assa, Kaba, Cal-Royal HSK and more

Door Strike

ASA 1-1/4" x 4-7/8" (standard)

Keypad Access

1 to 12 digits, digits can be entered in any order

Trim Dimensions

Escutcheon 3-1/2" x 8-1/8"; lever 5-1/2" with 7/8" return

Product Overview

This mechanical push button lock is ideal for securing doors in offices, schools, hospitals, apartments, hotels/motels, commercial, public, and residential buildings. It features a durable Grade 2 construction with a clutched lever design to deter forced entry and reduce damage. The lock supports a single entry code of 1 to 12 digits, which can be entered in any order, allowing for over 5,000 unique permutations.

Equipped with Schlage C" 6-pin keyway for override access, this lock also includes emergency reprogramming with a dedicated code-change key and an optional passage mode for code-free access. Easy installation and non-handed operation make this lock highly flexible. Weather-resistant and vandal-resistant features ensure long-term performance and reliability.

Function: Storeroom (default); optional Passage mode

Backset: 2-3/4" standard

Latch Faceplate: 2-1/4" x 1-1/8"

Strike: ASA 1-1/4" x 4-7/8" (standard)

Keypad Access: 1 to 12 digits, digits can be entered in any order

Override: Schlage C Keyway, 6-pin solid brass cylinder

Code Change: Without removing lock, using code-change key

Code-Free Option: Passage mode can be activated as needed

Security: Over 8000 non-sequential combinations possible

Clutch Lever: Prevents latch retraction when forced down; vandal deterrent

Handing: Non-handed; field reversible

Trim Dimensions: Escutcheon 3-1/2" x 8-1/8"; lever 5-1/2" with 7/8" return

Door Thickness:

CRCODE202: 1-3/8" to 2-1/4"

CRCODE203: 1-3/4"

CRCODE204: 1-3/4" to 2"

Cylinder Compatibility: Accepts Medeco, Assa, Kaba, Cal-Royal HSK and more

ANSI Grade: Grade 2 (A156.2, Series 4000)

Construction: Thru-bolted assembly with separate spring cage for each lever

Applications: For commercial, institutional, and public entry points

Finish:

626/US26D Satin Chrome

613/US10B Oil Rubbed Bronze
