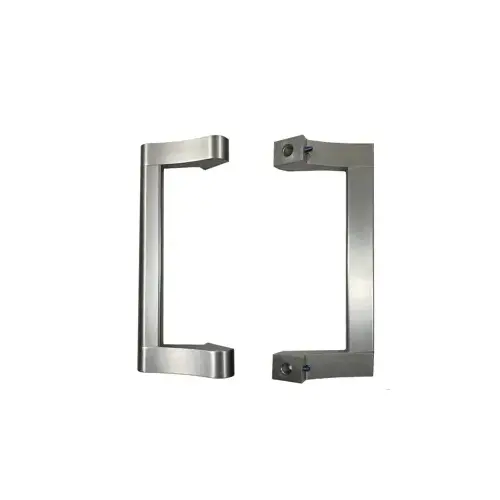

Calibre Door Closers PH1000E-AL 10" CTC Extruded Pull Handle Aluminum

Item #: PH1000E-AL by Calibre Door Closers

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

130184

Handing

Non-Handed

Function

Pull Handle

Door Accessories

Straight Pull Handle

Product Overview

Calibre Door Closers Pull Handles and Bars

OFFSET & STRAIGHT PULL HANDLES

  • PH-2000 - Offset Pull Handle
  • PH-2002 - Offset Pull Handle Set
  • PH-1000 - Straight Pull Handle
  • PH-1002 - Straight Pull Handle Set

    • SINGLE BEND & DOUBLE BEND PUSH BARS

  • PB-1000 - Single Bend Push Bar
  • PB-2000 - Double Bend Push Bar

    • FEATURES

  • 1" Diameter solid round aluminum extrusion, precision formed and machined.
  • High performance architectural Class 1 anodized finishes for abusive use and UV protection.
  • Product meets or exceeds AAMA 611-98 specifications.
  • Offset Pull Handles with 3-1/4" offset, 2-1/4" projection, and 2-1/4" door clearance.
  • Straight Pull Handles with 3" projection, and 2" door clearance.
  • Push Bars with 2-1/4" projection.
  • Push Bars can be ordered with Pull Handles for a Push/Pull Set. Specify Push/Pull combination use when ordering for correct mounting hardware package.
  • Mounting hardware included. Specify Thru-Bolt or Concealed fasteners for individual Pull Handles. Push Bars are Concealed at the Lock Jamb and Thru-Bolt at the free ends. Push/Pull Setis Back-to-Back at the meet and Thru-Bolt at the free ends.
  • Pull Handles CTC 9", 10" and 12". Push Bars are CTC 33- 1/16" (for a 36" Door) and CTC 45-1/16" (for a 48" door)
  • Polished Brass (US3) solid bent rod and Stainless Steel (US32 & US32D) solid bent rod finishes are available by special order.
  • Finishes available:
    • AL - Anodized Aluminum
    • BK - Anodized Black
    • DU - Anodized Storefront Bronze
