A380 aluminum alloy precision die cast pivot portions. Oilite bronze bushing in top frame pivot portion. Case hardened, spring loaded pin in Top Door pivot portion. Full race ball bearing in Bottom Door Pivot portion. Steel reinforcement plates for door portions provided with PV-5000 and PV-7000. Bottom Door pivot portion with 3/16” vertical height adjustment in the bearing with PV-5000 and PV-7000. Case hardened pivot stud in Floor/Jamb pivot portiond Floor/Jamb portion with 1/8" vertical height adjustment. AL - Painted Satin Aluminum SL - Sanded and Lacquer (PV-4000 Only) BK - Painted Black Paint DU - Painted Storefront Bronze
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

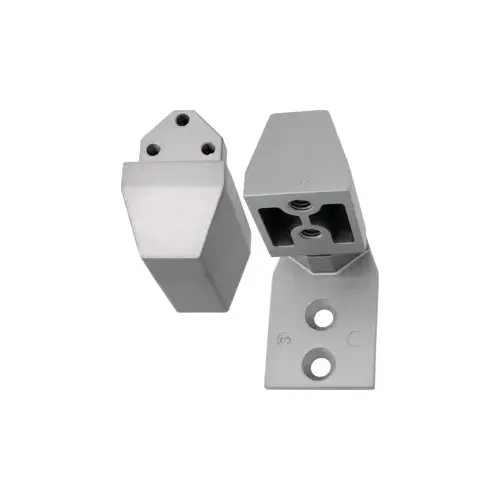

Calibre Door Closers PV1000-AL 3/4" Offset Flush Door Pivot Set Satin Aluminum
Item #: PV1000-AL by Calibre Door Closers
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
125642
Handing
Non-Handed
Offset
3/4"
Hinge Type
Pivot Set
Door Type
Aluminum Door, Flush Door
Hinge Rating
125 lbs
Height
2.13
Length
3.75
Width
3.25
Product Overview
Calibre Door CA/Hardware Series
3/4" Offset for use with Aluminum Doors and Frames
PV-1000 - For use on Flush Doors
PV-1500 - For use on 1/8" Recessed Doors
PV-3000 - For use on Flush Doors
PV-3500 - For use on 1/8" Recessed Doors
PV-4000 - For use on Flush Doors
PV-5000 - For use on 1/8" Recessed Doors (YKK Type) (includes Door Reinforcement Plates)
PV-6000 - For use on 7/64" Recessed Doors
PV-7000 - For use on 1/8" Recessed Doors (Kawneer 50-300 Type) (includes Door Reinforcement Plates)
Standard Baked Enamel Finishes available:
