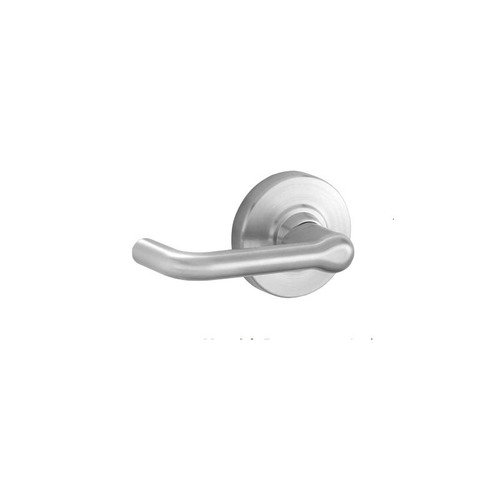

Command Access Technologies CAND80BDEU TLR 643e 24V Electric Cylindrical Lock Aged Bronze
Item #: CAND80BDEU TLR 643e 24V by Command Access
- Grade 1
- UL Listed
- 12 or 24 VDC
- Low Current Draw
- 3-Year Warranty
- Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
- Amperage - 12V = 250 mA / 24V = 150 mA
- Solenoid coil resistance - 12V = 49 Ω / 24V = 159 Ω
- Power consumption - 3 watts
Small format interchangeable core
Latch Backset Dim
SFIC Prep Less Core
Lock Face Size
2-1/4" x 1-1/8"
1-3/4" to 2"
3-7/16 In. Diameter
TLR - Tubular
Electrified Cylindrical Lock, Storeroom, 24VAC/DC Fail Secure, Tubular Lever, SFIC Prep, Aged Bronze
ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
The Command Access electrified version of Schlage cylindrical looks allows for remote keyless access and egress control for commercial use.
These locks may be purchased as complete locks or as modifications only (add MD prefix for modification only of customers' ND80 or ND94 clutching Series). Along with the styles and finishes listed below, we offer multiple functions and voltages to meet your requirements.
