Command Access Technologies CAND96PDEL OME 626 12V RX Electric Cylindrical Lock Satin Chrome
Item #: CAND96PDEL OME 626 12V RX by Command Access
- Grade 1
- UL Listed
- 12 or 24 VDC
- Low Current Draw
- 3-Year Warranty
- Operating Voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
- Amperage - 12V = 250 mA / 24V = 150 mA
- Solenoid coil resistance - 12V = 49 Ω / 24V = 159 Ω
- Power consumption - 3 watts
Latch Backset Dim
Lock Face Size
2-1/4" x 1-1/8"
1-3/4" to 2"
3-7/16 In. Diameter

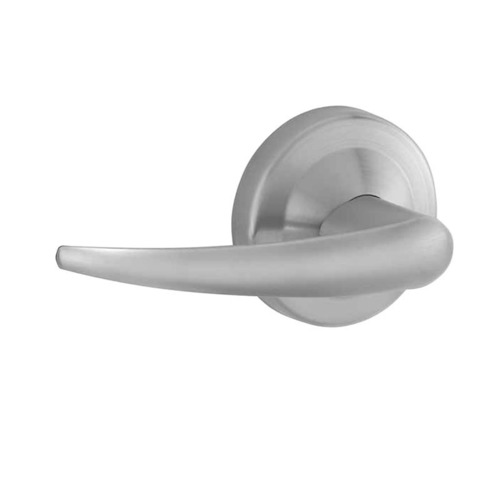

OME - Omega
Electrified Cylindrical Lock, Storeroom Vandlgard, 12VAC/DC Fail Safe, RX, Omega Lever, Satin Chrome
ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
The Command Access electrified version of Schlage cylindrical looks allows for remote keyless access and egress control for commercial use.
These locks may be purchased as complete locks or as modifications only (add MD prefix for modification only of customers' ND80 or ND94 clutching Series). Along with the styles and finishes listed below, we offer multiple functions and voltages to meet your requirements.
