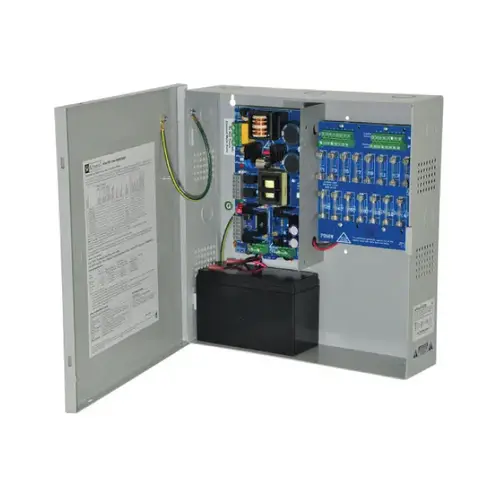

Altronix AL-EFLOW102N16D AL-EFLOW Hardwired Power Supply with Fire Alarm Release

eFlow102N SeriesPower Supply/Chargers

Altronix eFlow102N series power supply/chargers convert a 120VAC, 60Hz input into a single, eight (8), or sixteen (16) fused outputs or PTC protected Class 2 power-limited 12VDC outputs with a total of 10A max. They also offer a suite of features that includes fire alarm disconnect, overvoltage protection, and low power discon-nect which prevents deep discharge of stand-by batteries.

Key Features:

• Available with 1, 8 or 16 outputs

• Fused outputs or PTC protected Class 2 power-limited outputs.

• Additional aux. Class 2 power-limited output rated @ 1A

• Overvoltage protection

• Fire alarm disconnect

Supervision:

• AC Fail
• Battery Fail and Battery Presence
• Low power shutdown.

• Built-in charger for sealed lead acid or gel type batteries

• Instantaneous transfer to stand-by batteries

• Short circuit and overload protection

• AC input and DC output LED indicators

• UL Listed in the U.S. and Canada

• CE Approved

• Lifetime Warranty / Made in the U.S.A

Specifications: Input:

• Voltage - 120VAC, 60Hz, 3.5A max.
• Fusing - 5A / 250V.

Outputs:

• Voltage - 12VDC.
• Current - 10A continuous max.
• Protection - Fused 2.5A / PTC 2A.
• Auxiliary - Class 2 power-limited @ 1A (unswitched).
• Other - Overvoltage protection Filtered and regulated

Back-up Battery(not included):

• Capacity
  • - 7AH / 12VDC (1 within enclosure).
  • - 12AH / 12VDC (requires larger "X" enclosure).
  • - 40AH, 65AH (requires separate enclosure).
• Type - Sealed lead acid or gel type.
• Fuse - Rating 15A / 32VDC.
• Failover - Upon AC loss, instantaneous.

Fire Alarm Disconnect:

• Supervised Latching or non-latching.
• EOL - 10K Resistor.

Supervision:

• AC - FailureForm "C" contacts.
• Battery - Form "C" contacts.
• Low DC Power Shutdown - Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Indicators (LED):

• Input - 120VAC is present.
• DC Output - Powered.

Agency Listings: UL:

• UL294 - Access Control System Units.
• UL603 - Power Supplies for Use with Burglar-Alarms Systems.
• UL1481 - Power Supplies for Fire Protective Signaling Systems.

cUL:

• ULC-S318-96 - Power Supplies for Burglar Alarm Systems. Also suitable for Access Control.
• CSFM - California State Fire Marshall Approved.
• CE - European Conformity

Physical and Environmental: eFlow102N, eFlow102N8(D), eFlow102N16(D):

• 13.5" x 13" x 3.25" (H x W x D)
• (342.9mm x 330.2mm x 82.55mm)

eFlow102NX, eFlow102NX8(D), eFlow102NX16(D):

• 15.5" x 12" x 4.5" (H x W x D)
• (393.7mm x 304.8mm x 114.3mm)

Temperature:

• Operating - 32°F to 120°F (0°C to 49°C)
• Storage - -4°F to 158°F (-20°C to 70°C)

Relative Humidity:

• 85% +/-5%

BTU/Hr (approx.):

• 61 BTU/Hr.

Product Weight / Shipping (approx.): eFlow102N:

• Product Weight - 6.55 lbs. (2.97 kg)
• Shipping Weight - 7.45 lbs. (3.38 kg)

eFlow102NX:

• Product Weight - 8.4 lbs. (3.81 kg)
• Shipping Weight - 9.5 lbs. (4.31 kg)

eFlow102N8(D):

• Product Weight - 6.7 lbs. (3.04 kg)
• Shipping Weight - 7.6 lbs. (3.45 kg)

eFlow102NX8(D):

• Product Weight - 8.6 lbs. (3.9 kg)
• Shipping Weight - 9.7 lbs. (4.4 kg)

eFlow102N16(D):

• Product Weight - 6.85 lbs. (3.11 kg)
• Shipping Weight - 7.75 lbs. (3.52 kg)

eFlow102NX16(D):

• Product Weight - 8.75 lbs. (3.97 kg)
• Shipping Weight - 9.85 lbs. (4.47 kg)
