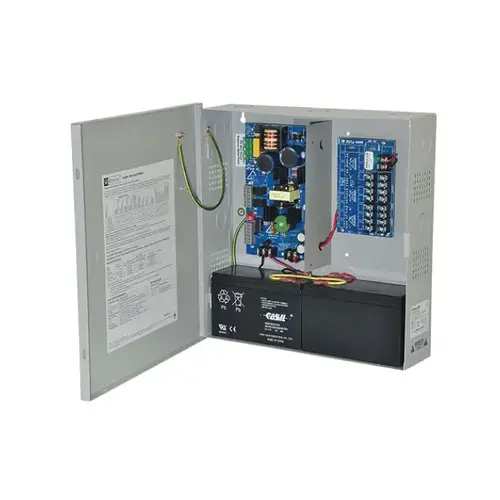

Altronix AL-EFLOW4N8D AL-EFLOW Hardwired Power Supplies with Fire Alarm Release

eFlow4N SeriesPower Supply/Chargers

Altronix eFlow4N series power supply/chargers convert a 120VAC 60Hz input into a single or eight (8) fuse or PTC protected Class 2 power-limited outputs. Power sup-ply/charger is selectable for 12VDC or 24VDC with a total of 4A max. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Key Features:

• Available with 1 or 8 outputs

• Fuse or PTC protected Class 2 power-limited outputs

• Additional aux. Class 2 power-limited output rated @ 1A

• Overvoltage protection

• Fire alarm disconnect.

Supervision:

• - AC Fail
• - Battery Fail and Battery Presence
• - Low power shutdown

• Built-in charger for sealed lead acid or gel type batteries

• Instantaneous transfer to stand-by batterie

• Short circuit and overload protection

• AC input and DC output LED indicator

• UL Listed in the U.S. and Canada

• CE Approved

• Lifetime Warranty / Made in the U.S.A

Specifications: Input:

• Voltage - 120VAC, 60Hz, 3.5A max.
• Fuse - Rating 5A/250V.

Outputs:

• Voltage - 12VDC or 24VDC selectable.
• Current - 4A continuous max.
• Protection - Fused 2.5A / PTC 2A.
• Auxiliary - Class 2 power-limited @ 1A (unswitched).
• Other - Overvoltage protection. Filtered and regulated.

Back-up Battery (not included):

• Capacity
  • 7AH / 12VDC (1 or 2 within enclosure).
  • 12AH / 12VDC (requires larger "X" enclosure).
  • 40AH, 65AH (requires separate enclosure).
• Type - Sealed lead acid or gel type.
• Fuse - Rating 7.5A/32VDC.
• Failover - Upon AC loss, instantaneous.

Fire Alarm Disconnect:

• Supervised - Latching or non-latching.
• EOL - 10K Resistor.

Supervision:

• AC - FailureForm "C" contacts.
• Battery - Form "C" contacts.
• Low DC Power Shutdown - Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Indicators (LED):

• Input - 120VAC is present.
• DC Output - Powered

Agency Listings: UL:

• UL294 - Access Control System Units.
• UL603 - Power Supplies for Use with Burglar-Alarms Systems.
• UL1481 - Power Supplies for Fire Protective Signaling Systems.

cUL:

• ULC-S318-96 - Power Supplies for Burglar Alarm Systems. Also suitable for Access Control.
• CSFM - California State Fire Marshall Approved.
• CE - European Conformity

Physical and Environmental: eFlow4N, eFlow4N8(D):

• 13.5" x 13" x 3.25" (H x W x D)
• (342.9mm x 330.2mm x 82.55mm)

eFlow4NX, eFlow4NX8(D):

• 15.5" x 12" x 4.5" (H x W x D)
• (393.7mm x 304.8mm x 114.3mm)

Temperature:

• Operating - 32°F to 120°F (0°C to 49°C)
• Storage - -4°F to 158ºF (-20°C to 70°C)

Relative Humidity:

• 85% +/-5%

BTU/Hr. (approx.):

• 12VDC: 25 BTU/Hr
• 24VDC: 49 BTU/Hr

Product Weight / Shipping (approx.): eFlow4N:

• Product Weight - 6.55 lbs. (2.97 kg)
• Shipping Weight - 7.45 lbs (3.38 kg)

eFlow4NX:

• Product Weight - 8.4 lbs. (3.81 kg)
• Shipping Weight - 9.5 lbs (4.3 kg)

eFlow4N8(D):

• Product Weight - 6.7 lbs. (3.04 kg)
• Shipping Weight - 7.6 lbs (3.45 kg)

eFlow4NX8(D):

• Product Weight - 8.55 lbs. (3.88 kg)
• Shipping Weight - 9.65 lbs (4.38 kg)

Accessories: Network Supervision:

• Altronix model LINQ2 Network Communication Module provides remote supervision, control and monitoring over LAN/WAN
  • - Remotely reports accurate power diagnostics
  • - Controls power and resets devices
  • - Reports system diagnostics via Email
