Cansec Systems Ltd P-640-HA CanProx Readers - Select HID and AWID 125 kHz

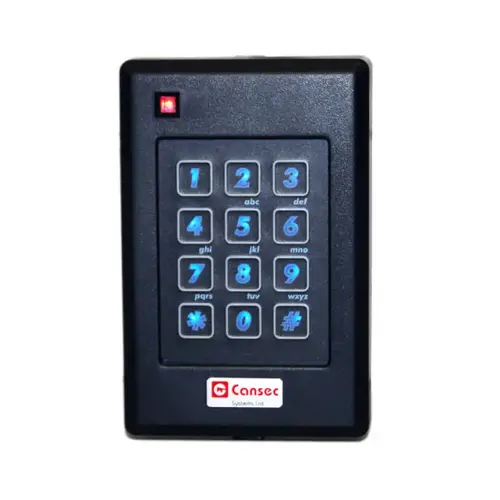

P-640CanProx Proximity/Keypad Reader

The P-640 integrates both a proximity reader and keypad into a single unit making it ideal for applications requiring an access credential and/or personal identification number (PIN). It can also be used as a keypad only. Keypad data is transmitted in either 37-Bit or 26-Bit Wiegand data format.

Application:

• Compact design makes it ideal for applications requiring both a card reader and a keypad, such as door access (metal or plastic wall-box mount), gate entry and parking barriers.

Compatible:

• Wiegand protocol for easy integration with standard access systems.

Versatile:

• Supports leading proximity card and tag technologies.

Performance:

• Delivers non-contact read ranges up to 7 inches (176 mm).

Durable:

• Secured with tamper- and weather-resistant epoxy potting, and backed by a lifetime warranty.

Features & Benefits: Technology:

• Proximity

Operating Frequency:

• 125 kHz

Mounting:

• Metal or plastic US single-gang wall box, as well as flat surfaces

Dimensions:

• 3" W × 4.6" H × 0.75" D
• (76 mm × 117 mm × 19 mm)

OEM Label Area Dimensions:

• 0.9 x 0.35 inch (22.86 x 8.89 mm), with corner
  radius of 0.063 inch (1.6 mm)

Weight:

• 4 oz. (113g)

Certification:

• FCC, ICC, CE, C-Tick, UL Standard 294

IP Code1:

• IP67

Voltage2:

• +5 - 16 VDC

Current Draw:

• 70 mA typical
• 110 mA peak @ 12VDC

Read Range3:

• Up to 7 inches (176 mm)

Cabling4:

• 24 AWG minimum, multi-conductor stranded with an overall foil shield

Interface:

• Wiegand

Operating Temperature:

• -40° F to 149° F (-40° C to +65° C)

Color Options:

• *A black and a white snap-on cover included standard

Audio Tone:

• Beeper included standard

Indoor & Outdoor Installation:

• Electronics sealed in weather- and tamper-resistant epoxy potting

Warranty:

• Limited lifetime warranty

LED:

• Four-state standard (red, green, amber & off)

Keypad Output5:

• 26-Bit Wiegand (P-640-HA) or 37-Bit Wiegand (P-640-HA37)

Technologies Supported:

• CanProx Proximity Cards and Tags
• CanProx + HID® 125-kHz proximity credentials + AWID® 125-kHz proximity credentials

• 1 Self evaluated.
• 2 Linear power supplies are recommended for best operation.
• 3 Using Standard Light Proximity Card with 12VDC at the reader.
• 4 For example Belden 9535 or similar.
• 5 Available only on P-640 models; 37-Bit or 26-Bit Wiegand standard.

Part Numbers:

• P-640-HA (26-Bit Wiegand Output)
• P-640-HA37 (37-Bit Wiegand Output)
