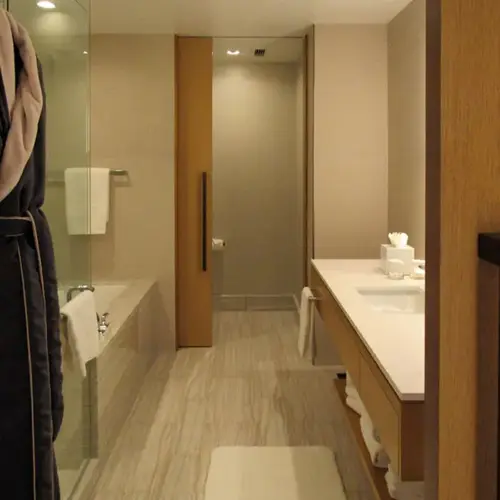

Cavity Sliders CS3068 CS Cavity Sliders Pocket Door Kit
Item #: CS3068 by Cavity Sliders
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Groove Needed for Guiding System
Yes
Detailed Door Movement
Single sliding
Door Movement
Pocket Door
Drilling
1 in
Manufacturing Material
Aluminum
Groove Width at the Bottom of Door
1/4 in
Roller Position
Upper
Running Track Fixing
Recessed
Track Mounting
Ceiling Mount
Track type
Box Track
Packaging Format
Box
Screw/Nail Included
No
Soft-Closing
No
Stopper
One
Finish
Anodized
Overall Length
72 in
Application
Pocket Door
Load Capacity
200 lb
Door Thickness
1 3/8 to 1 3/4 in
Door Width
Max. 36 in
Door Height
Max. 80 in
Roller Type
Ball Bearing
Drilling Depth
0.5 in
Groove Depth
1 in
Door position
Concealed Inside Wall
Adjustable
Yes
Product Type
Pocket Door
Number of Doors
1
Door Material
Wood
Displayed in These Showrooms
Mississauga
Door Installation
Top Hung
Product Overview
The CS Cavity Sliders Pocket Door Kit is designed for single sliding wood doors weighing up to 200 lb (90 kg) and 500 lb (227 kg) each. Made for standard 2 x 4 wood and metal wall stud construction.
Features:
Choose from three types of kits for various door widths and heights:
- Door widths of 36 in (914 mm) and 48 in (1.2 m)
- Door heights of 80 in (2 m) and 96 in (2.4 m)
Two types of carriage/hardware sets with one stopper to choose from:
- M6 for 200 lb (90 kg) door
- M8 for 500 lb (227 kg) door
- CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sturdy double wall aluminum pocket frame structure can be cut to size to accommodate different door widths and heights
- Low profile upper track is part of the structure of the pocket frame
- Trim clips for easy press-on mounting for door jamb trim
- Pivoting bottom guide to ease loading the door into the pocket frame during installation
- Large wheel trolleys with precision ground bearings for smooth running
- Simple and flexible low-cost installation
- Cut a groove bottom of the door to conceal floor guide
For soft-close options, refer to the CS Cavity Sliders Pocket Door System in the Suggested Products section below.
For bi-parting applications use connecting pin item no. ZK00305 to line up and connect two systems.
Ideal for residential, commercial, and institutional projects for a wide variety of applications, such as doorways for bedrooms, washrooms, utility rooms, offices, etc.
Features:
Choose from three types of kits for various door widths and heights:
- Door widths of 36 in (914 mm) and 48 in (1.2 m)
- Door heights of 80 in (2 m) and 96 in (2.4 m)
Two types of carriage/hardware sets with one stopper to choose from:
- M6 for 200 lb (90 kg) door
- M8 for 500 lb (227 kg) door
- CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
- Sturdy double wall aluminum pocket frame structure can be cut to size to accommodate different door widths and heights
- Low profile upper track is part of the structure of the pocket frame
- Trim clips for easy press-on mounting for door jamb trim
- Pivoting bottom guide to ease loading the door into the pocket frame during installation
- Large wheel trolleys with precision ground bearings for smooth running
- Simple and flexible low-cost installation
- Cut a groove bottom of the door to conceal floor guide
For soft-close options, refer to the CS Cavity Sliders Pocket Door System in the Suggested Products section below.
For bi-parting applications use connecting pin item no. ZK00305 to line up and connect two systems.
Ideal for residential, commercial, and institutional projects for a wide variety of applications, such as doorways for bedrooms, washrooms, utility rooms, offices, etc.
