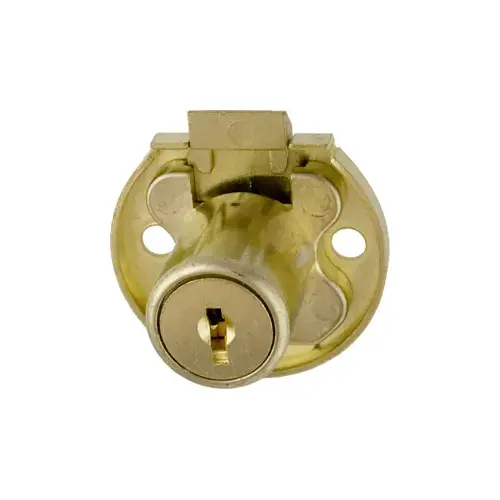

CCL Security Products 02068-1/2KA 7/8" Drawer Lock Round Spring US4 Satin Brass
Item #: 02068-1/2KA by CCL Security Products
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
103010
Lock Style
Drawer Lock
Height
1.75
Length
2.25
Width
1.75
Product Overview
CCL 02068 / 02068-1/2 Drawer Locks
DISC TUMBLER Cannot be Masterkeyed
Features/Benefits:
7/8" can be masterkeyed
1-1/8" cannot be masterkeyed
Material:
Brass plated steel backplate, cylinder and bolt, pressure cast
Rekeying:
- To remove plug, insert key and rotate 90 degrees.
- Insert end of small tool (e.g., paper clip) into access hole and depress retainer while pulling key and plug out.
Strike No.: 7S, brass US4 only, furnished only when ordered
Available Finishes
US4
US26D
