CDVI A22K1DS Krypto 2-Door Kit - A22K, 2-K1, 2-2400 Strikes, 25 Fobs

Item #: A22K1DS by CDVI

See reviews See reviews

In Stock $1,670.62 /each

SAVE UP TO 167.06

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

169450

CDVI Atrium 2-Door Reader and Door Strike Kit (A22K1DS)

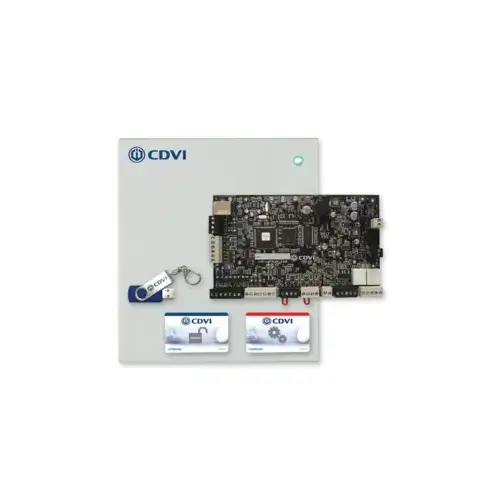

Kit includes: (1) A22K controller. (2) K1 high security readers. (2) Door strikes (ROFU 2400 Kit). (1) pack of 25 TAG-EV2. Atrium software. Master and programming cards.

SPECIFICATIONS:

  • A22K: Encrypted 2-Door / 4-Reader IP Controller.
    • Controls 2 doors and 4 readers (Entry/Exit per reader port).
    • Pre-assembled universal plug-in power supply (120V/240V) included.
    • Convert any A22K door controller to an A22KEC elevator controller by simply updating the firmware for free (up to 256 floors).
    • On-board Ethernet Port with AES 256-bit encryption.
    • On-board RS485 communication bus, 1220 m (4000 feet).
    • Embedded secure HTTPS web server.
    • Auto-detect hardware modules.
    • Quick and easy card enrollment procedure.
    • Lock outputs: 2 (750 mA @ 12 VDC/each).
    • Relay Outputs: 2 Form C relays (Dry Contact) 5 A @ 250 VAC, 7 A @ 125 VAC, 7 A @ 30 VDC.
    • 6 multi-purpose inputs (12 using zone doubling).
    • IPV6 ready.
    • Entirely fuseless system.
    • Up to 10,000 users.
    • Up to 10,000 cards.
    • Up to 25,000 Event Buffer.
    • FREE Atrium Software.
    • Maintenance-friendly snap on terminal connectors.
    • Comprehensive LED status indicators.
  • K1: Krypto High Security Card Reader.
    • Compatible with ATRIUM A22K controller.
    • Fully secure RS-485 connection.
    • Reads 13.56 MHz Mifare Classic and DESFire EV1/EV2 credentials.
    • OSDP-2 compatible.
    • Up to 2 in. (5 cm) read range.
    • Operating temperature: - 13°F to 140°F.
    • Power requirements: 12 VDC.
    • Dimension (LxHxD): 1.65" x 5.5" x 0.91".
  • 2400 Kit: Universal Door Strike.
    • Designed for cylindrical locksets.
    • PoE friendly.
    • Fail safe / fail secure.
    • Includes 2 faceplates.
    • Low profile: 1-1/4" depth overall.
    • Static strength: 1000 lbs (454 kg).
    • Latch throw: 1" max with 1/8" door gap.
    • Current draw: 300 mA/12 VDC; 150 mA/24 VDC.
    • Dimensions: 4-7/8" x 1-1/4" x 1-1/4".
  • TAG-EV2: Mifare DESFire EV2 4k Badge.
    • DESFire Ev2 4k format.
    • 1.75"(45mm) x 0.5"(13mm) x 0.08"(2mm).
    • 13.56 Mhz proximity card.
    • Pack of 25 cards.

    FINISHES:

  • » N/A
