CDVI A22K1TB Americas A22K1TB Atrium 2-Door Kit - A22, 2-Nano, 15 Credentials

Item #: A22K1TB by CDVI

Brand: CDVI

Item Discontinued!
See reviewsSee reviews
See reviews summary

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Alternate Part Number-1

161672

Model

A22K1TB

Electronic

Yes

Product Overview

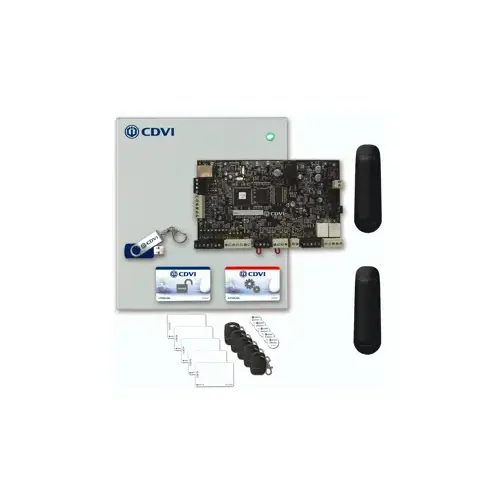

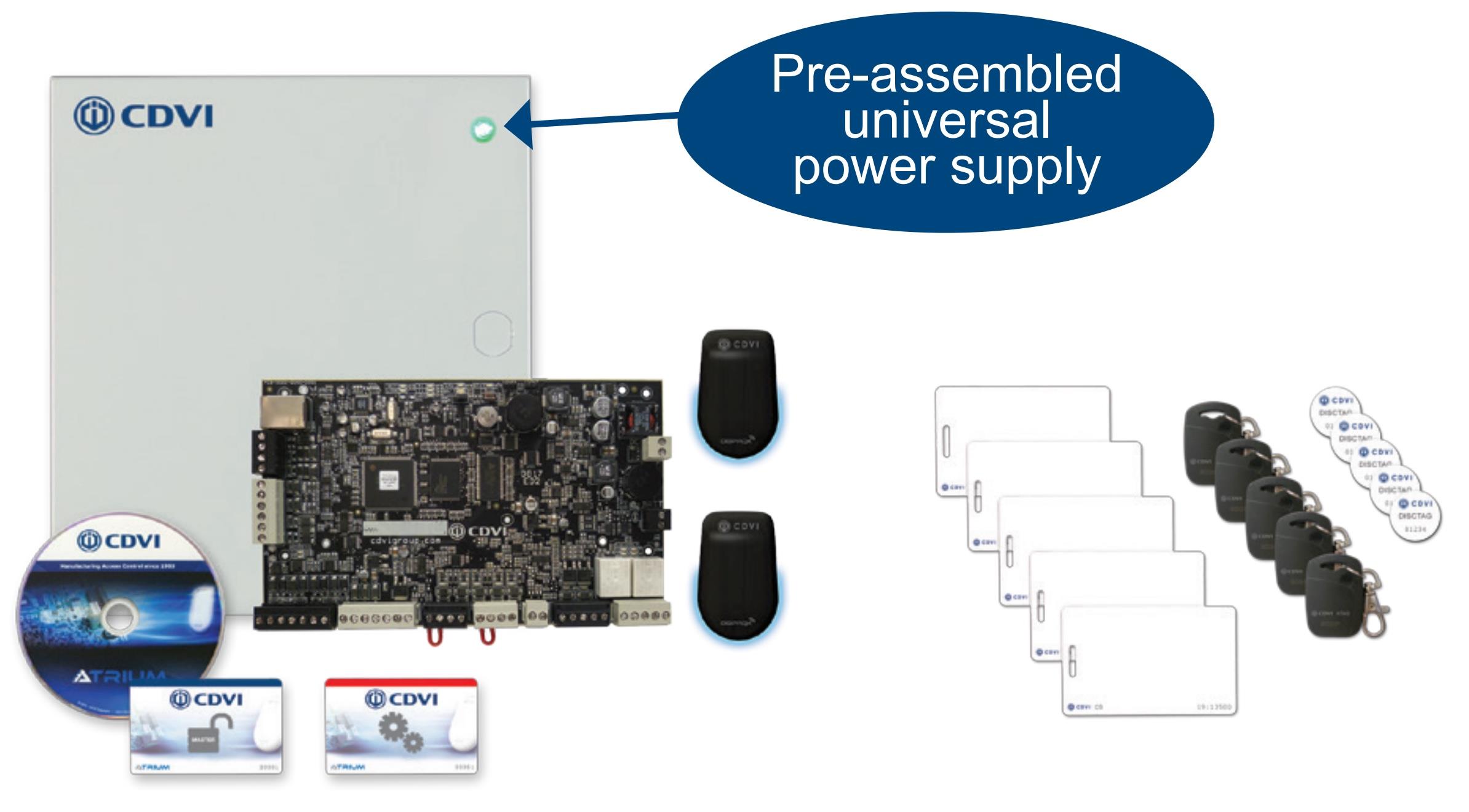

CDVI Atrium 2-Door NANO Kit (A22KITB)

Kit Includes: (1) A22. (2) NANOPB (black mini proximity readers). (15) credentials (5 x CS, 5 x KTAG and 5 x DISCTAG). FREE Software.

SPECIFICATIONS:

A22: Atrium hybrid 2-door controller.

  • Reader Support:
    • 26, 30 & 44 Bit Wiegand format.
    • Track 2 ABA.
    • Reader & Keypad (Card & PIN).
    • All CDVI Readers.
    • 3rd Party if compatible.
    • 128 bit Universal Input.
  • Communication:
    • On-board Ethernet: A22 to A22 (max 10)RS-485.
    • Bus: A22 (max 4 per A22).
    • Auto-detect hardware modules (No DIP Switches).
  • On-board Protection:
    • Auxiliary outputs: 1A (12Vdc) Fuseless protection.
  • Input Specifications:
    • Reader Inputs/Ports: 2.
    • Multi-purpose inputs: 6 (12 using zone doubling).
  • Output Specifications:
    • Lock outputs: 2 (750mA @ 12Vdc).
    • + Combined.
    • Relay Outputs: 2 Form C relays (Dry Contact) 5A @ 250Vac, 7A @ 125Vac, 7A @ 30Vdc.
  • Electrical Specifications:
    • Power input: 85Vac to 264Vac, 50/60Hz.
    • Supply Current: 3.3A switching power supply.
    • Battery backup: One 12Vdc, 4.5Ah or 7Ah, gel type battery.
  • Dimensions:
    • PCB dimensions: 210 x 130 x 30mm.
  • Environment:
    • - 22°C to 50°C (- 4°F to 122°F).

    NANO: Mini Proximity Card Reader.

  • Casing Construction:
    • Polycarbonate.
  • Card Reading Technology:
    • 125 Khz:
  • Multi-card protocol:
    • CDVI Cards Only.
  • Indoor/Outdoor:
    • Yes. (PCB sealed in epoxy).
  • Read Range:
    • Up to 2.4" (6 cm).
  • Audible and Visual Feedback:
    • Yes.
  • Input voltage:
    • 12 Vdc.
  • Current Consumption:
    • 100 mA.
  • Operating temperature:
    • - 22°F to 158°F (- 30°C to 70°C).
  • Dimensions:
    • 2.75"(70mm) x 1.7"(43mm) x .9"(23mm).
  • Certifications:
    • RoHS, WEEE, IP53, CE FCC, R&TTE, ETL (UL294).

    CS: Standard Clamshell Card.

  • CDVI encoding card.
  • 85 mm x 54 mm x 1.8 mm.
  • 125 kHz proximity card.
  • Sequential decimal number printed on each card.

    • KTAG: Black Key Ring Badge.

  • CDVI encoding card.
  • 44 mm x 30 mm x 4 mm.
  • 125 kHz proximity card.
  • Sequential decimal number printed on each card.

    • DISCTAG: Mini PVC Adhesive Badge.

  • CDVI encoding card.
  • Adhesive on one side.
  • 20 mm (dia.) x 1.5 mm.
  • 125 kHz proximity card.
  • Sequential decimal number printed on each card.

    • FINISHES:

  • » N/A
