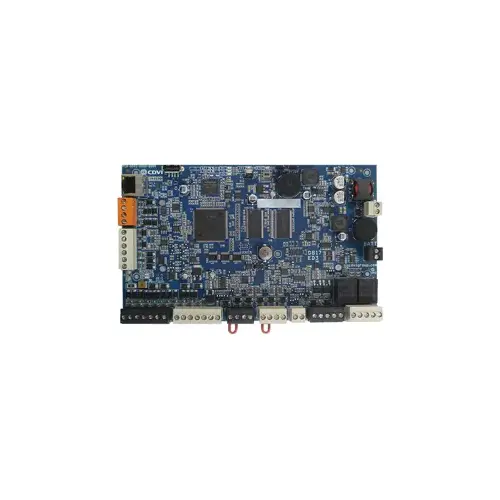

CDVI A22KNB Krypto 2-Door Controller Only - No Box

Item #: A22KNB by CDVI

See reviewsSee reviews

$954.56

/each
SAVE UP TO 95.46

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

169451

Product Overview

CDVI Atrium A22 Web-Based IP hybrid module

A22: is ATRIUM’s powerful Web-Based IP hybrid module. The flexibility of the ATRIUM system allows it to control up to 500 doors, thanks to its free software.

A22: includes an embedded web server that combines performance and simplicity enabling you to manage Users/Cards, lock or unlock doors, view system events and display controller information from anywhere in the world.

Industry-unique and effortless card enrolment mode minimizes system start up and simplifies your life.

FEATURES:

  • Controls 2 doors and 2 readers. (1 Door Read In/Out OR 2 Doors Read In Only).
  • Pre-assembled universal plug-in power supply.
  • (120V/240V) included.
  • On-board Ethernet Port with AES 256-bit encryption.
  • On-board RS485 communication bus, 1220 m (4000 feet).
  • On-board Embedded Web Server.
  • Auto-detect hardware modules.
  • Quick and easy card enrolment procedure.
  • Lock outputs: 2 (750mA @ 12VDC/each).
  • 6 multi-purpose inputs (12 using zone doubling).
  • Completely fuseless system.
  • Up to 500 doors.
  • Up to 10,000 users.
  • Up to 10,000 cards.
  • Up to 25,000 Event Buffer.
  • Ultra fast firmware updating.
  • FREE Management Software.
  • Maintenance-friendly snap on terminal connectors.

    • SPECIFICATIONS:

  • Reader Support:
    • 26, 30 & 44 Bit Wiegand format.
    • Track 2 ABA.
    • Reader & Keypad (Card & PIN).
    • All CDVI Readers.
    • 3rd Party if compatible.
    • 128 bit Universal Input.
  • Communication:
    • On-board Ethernet: A22 to A22 (max 10)RS-485.
    • Bus: A22 (max 4 per A22).
    • Auto-detect hardware modules (No DIP Switches).
  • On-board Protection:
    • Auxiliary outputs: 1A (12Vdc) Fuseless protection.
  • Input Specifications:
    • Reader Inputs/Ports: 2.
    • Multi-purpose inputs: 6 (12 using zone doubling).
  • Output Specifications:
    • Lock outputs: 2 (750mA @ 12Vdc).
    • + Combined.
    • Relay Outputs: 2 Form C relays (Dry Contact) 5A @ 250Vac, 7A @ 125Vac, 7A @ 30Vdc.
  • Electrical Specifications:
    • Power input: 85Vac to 264Vac, 50/60Hz.
    • Supply Current: 3.3A switching power supply.
    • Battery backup: One 12Vdc, 4.5Ah or 7Ah, gel type battery.
  • Dimensions:
    • PCB dimensions: 210 x 130 x 30mm.
  • Environment:
    • - 22°C to 50°C (- 4°F to 122°F).

    FINISHES:

  • » N/A
