4-IN-1 HEATMASTER CONDENSER FAN MOTOR, 5-5/8 IN., 208 - 230 VOLTS, 3.6 AMPS, 1/2 - 1/5 HP, 1,075 RP Black

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

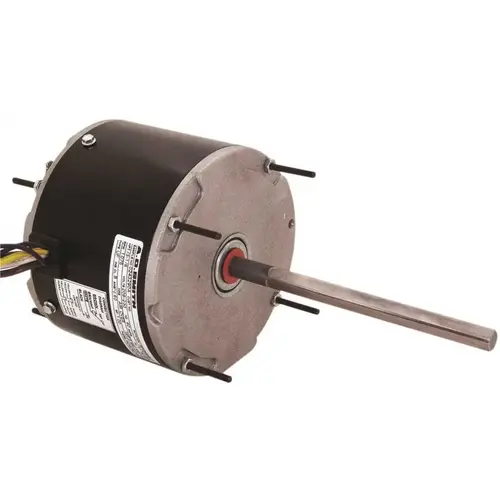

Century ORM5459BF 4-IN-1 HEATMASTER CONDENSER FAN MOTOR, 5-5/8 IN., 208 - 230 VOLTS, 3.6 AMPS, 1/2 - 1/5 HP, 1,075 RP Black

Item #: ORM5459BF by CENTURY DRILL & TOOL LLC

UPC #: 094720593812

See reviewsSee reviews
See reviews summary
In Stock

$275.03

/each
SAVE UP TO 27.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Nameplate RPM

1075

Shaft Length

6.5 in.

Color

Black

HVAC Product Type

HVAC Part

Amperage

3.6 Amp

Shaft Type

D-Profile

Phase

1

Voltage

208/230 Volt

Overall Length

11.875 in.

Motor Enclosure Type

Totally Enclosed

Horsepower

1/5 HP

Pack Size

1

Motor Mount Type

Stud

Overload Protection

Automatic

UNSPSC

40101700

Frame Size

48

Maximum RPM

1075 RPM

Shaft Diameter

0.5 in.

Package Quantity

1

UL Listed

No

ADA Compliant

No

Bearing Type

Ball

Motor Rotation

Reversible

Insulation Class

F

Enclosure Style

TEAO

MADE IN THE USA

No

Full Load Amperage

3.6 amp

Motor Mounting Type

Band,Hole,Ring,Stud

Service Factor Rating

1

Assembled Product Height

6.81 in.

Assembled Product Width

6.45 in.

Name Plate RPM

1075 RPM

GSA Approved

No

Thermal Protection Rating

Auto

AbilityOne

No

TAA/BAA Compliant

Yes

Motor Design

Permanent Split Capacitor

Product Overview

Century 4-in-1 HeatMaster Multi-horsepower Condenser Fan Motor

  • 1/2 - 1/5 HP
  • 208 - 230 Volts
  • 1075 RPM
  • 3.6 Amps
  • 1-Speed
  • Reversible Rotation
  • 48Y Frame
  • Ball Bearings
  • 70°C Ambient
  • Class "F" Insulation
  • All Angle Mounting
  • Removable Drain Plugs Each End
  • Rheem Mounting Holes (Screws Included)
  • Totally Enclosed
  • Motor Diameter: 5-5/8"
