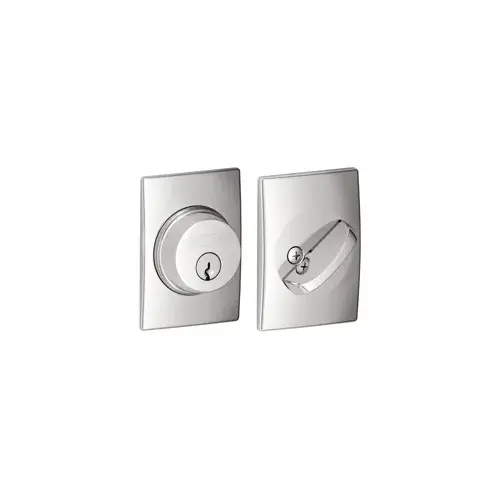

Schlage Residential B60 CEN 625 B60NCEN625 12-287 10-116 K4 Century 1-Cyl Deadbolt - Polished Chrome
Item #: B60 CEN 625 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156389957
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Easy Installation: One-Person Project; No Extra Hands Needed
- Biggest Adjustable Bolt Available
- Applications: Residential single- and multi-family doors
- Pick and Bump Resistant
- Adjusts to Fit All Standard Door Preparations
- Certifications: Meets Grade 1 BHMA requirements
- U.L. Listed: Locks for up to three-hour fire doors available
- Lifetime Mechanical & Finish Warranty
- Quality Finishes for Lasting Beauty
- Unique Snap & Stay Design
- Keying: 5-pin tumbler C keyway standard, with two brass keys. 6-pin cylinder available.
- Single Cylinder. Deadbolt - Unlocked by Key from Outside or by Inside Thumbturn
- Door thickness range: 1-3/8” to 1-3/4” (5mm-51mm) standard.
- Backset: Universal deadbolts fit 2-3/8” or 2-3/4” backset
Finish
Polished Chrome
Function
Single Cylinder
Series
B60 Series
Design
Century
Strike
Round Corner Deadbolt Strike
Backset
Triple Option Adjustable Deadbolt, 2-3/8" or 2-3/4" Backset
Thickness
1-3/8 In. - 1-3/4 In.
ANSI Function
E2152 - Single Cylinder Deadbolt
Special Marks
Conventional cylinder
Cylinder Type
Conventional Cylinder
Package Qty
1
Number of Pins
5-Pin
Color Code
625/US26
Rose/Escutcheon Design
CEN - Century
Base Material
Brass or Bronze
Keyway
SC1 5-Pin Pin & Tumbler
Grade
ANSI/BHMA Grade 1
Finish Description
Bright Polished Chrome
Keyblank Grouping
SCHL-C-5-1
Rose/Escutcheon Trim
CEN-Century
Product Type
Auxiliary Lock
Handing
Reversible
Collection
Deadbolts - Contemporary
Package Height
3.06"
Package Length
8.14"
Package Width
4.37"
Item Weight
2.12 lbs
No Of Pins
5 Pin Cylinder
No of inners
1
Latch Faceplate Dimension
1" x 2-1/4"
Finish code
625
Cross Bore Size
1-1/2" or 2-1/8" Bore
Strike Dimension
1-1/8" x 2-3/4"
Hazardous Material
No
Door Range
1-3/8" to 1-3/4"
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Door Thickness
1-3/8" to 1-3/4"
Material
Zinc
Dimension
2-11/16" x 3-1/2"; 1" Projection
ANSI/BHMA Standards
E2152 - Deadlock, Single Cylinder
Keyed
Yes
Keying
None (Select for Less Cylinder Options)
Latch Throw
1"
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-116: Round Corner Strike with Reinforcer, 2-3/4" x 1-1/8"
Keys Included
2
Door Thickness Range
1-3/8" To 1-3/4"
Standard Cylinder
Single 5 Pin Cylinder, C Keyway
Standard Latch
12-321: Dual Option Latch, Adjustable 2-3/8" and 2-3/4" Backset
Projection
1"
Product Overview
The Schlage Single Cylinder Deadbolt with Century Trim in Bright Chrome is perfect for use on exterior doors and adds an extra layer of security to your exterior handleset or knob/lever. The Century Trim is chic with a delicate, slightly curved shape. When finished in mirror-like Bright Chrome, the deadbolt adds a touch of drama. Plus, it's been designed and tested with strength and durability in mind.
