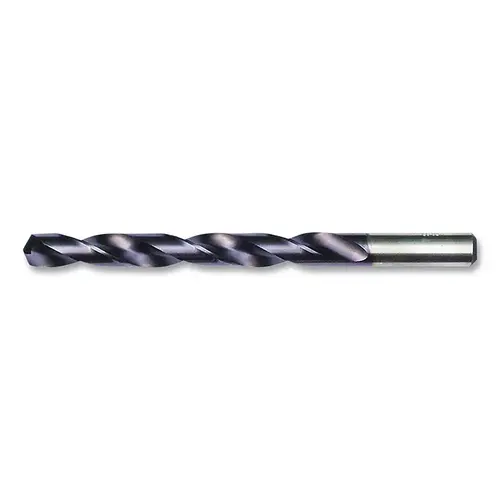

550-TA Heavy-Duty Cobalt TiAlN Jobber-Length Drill Bit, 1/2 in dia Cutting, Split, 6 in OAL

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Chicago-Latrobe 44932-XCP1 550-TA Heavy-Duty Cobalt TiAlN Jobber-Length Drill Bit, 1/2 in dia Cutting, Split, 6 in OAL

Item #: 44932-XCP1 by Chicago-Latrobe

UPC #: 066235544932

See reviewsSee reviews
See reviews summary
In Stock

$74.97

/each
SAVE UP TO 7.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

TiAlN

Material

HSS-CO 8% (M42)

Bit Length

0.5 in

Type

Style 550-TA

Shank Type

Straight

Flute Length

4.5 in

Point Angle

135° RHS/RHC

No of Flutes

2

Point Shape

Split

Nominal Diameter

1/2 in

Cutting Diam [Nom]

1/2 in

Overall Length [Nom]

6 in

Flute Type

Spiral

Number of Flutes

2

Standards

DIN 338

Cutting Direction

Right Hand

Series

550TA

Point Type

Split

Drill Bit Material

Cobalt

Spiral Type

Regular

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.5000

Drill Bit Size (Inch)

1/2

Drill Bit Size Range (Decimal Inch)

0.5000 - 0.6500

Drill Point Angle

135 degrees

Flute Length (Inch)

4-1/2

Material Grade

M42

Overall Length (Decimal Inch)

6.0000

Overall Length (Inch)

6

Primary Workpiece Material

Titanium

Shank Diameter (Inch)

1/2

Shank Length (Decimal Inch)

1.5000

Shank Length (mm)

38.10

Tool Performance

High Performance

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.0010 to 0.0000 in

Drill Bit Finish/Coating

TiAlN

Specification Designation

NAS

Specification Number

NAS 907

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Heavy-duty construction for drilling in tough, high-tensile, and work-hardening materials under extreme operating conditions
Manufactured from premium cobalt high-speed steel, increasing hot hardness and extending drill wear life
135 degree P3 split point is self-centering for reduced thrust and easier penetration
Titanium aluminum nitride (TiAlN) coating combines the ability to work in high-temperatures with added hardness to increase drill life.
